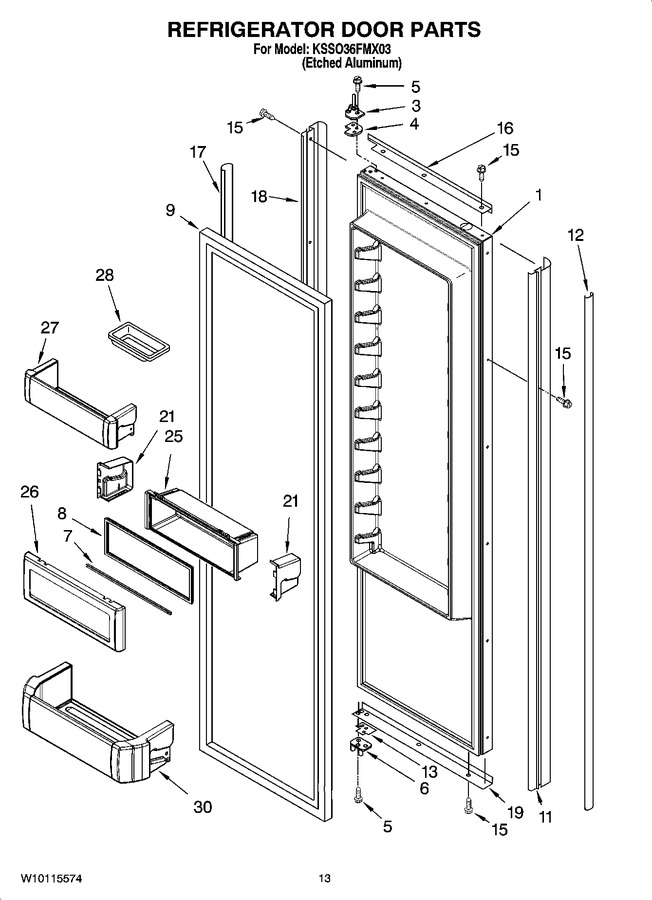

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252329		Refrigerator Door Panel (includes Item 9)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	2222795		Rail, Lid				$ 84.11
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 214.40
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
11	2259040X		Trim, Door (handle Side) (etched Aluminum)		Appelez-nous	-
12	2259365X		Cover, Screw (handle Side) (etched Aluminum)				$ 102.27
13	2257637		Door Spacer, Bottom				$ 15.45
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
16	100005988		Trim, Door (top) (etched Aluminum)   (Replaces: 2005010)				$ 13.51
17	2259448X		Cover, Screw (hinge Side) (etched Aluminum)		Appelez-nous	-
18	2257686X		Trim, Door (hinge Side) (etched Aluminum)		Appelez-nous	-
19	2215993		Trim (bottom) (etched Aluminum)		Appelez-nous	-
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
25	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 84.93
26	WPW10131132		Door, Utility Bin   (Replaces: 2222924)				$ 75.81
27	W10323598		Door Shelf   (Replaces: 2222772)				$ 104.79
28	2165792		Butter Tray		Appelez-nous	-
30	W10323746		Shelf, Gallon Door   (Replaces: 2222769)				$ 108.24
