SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

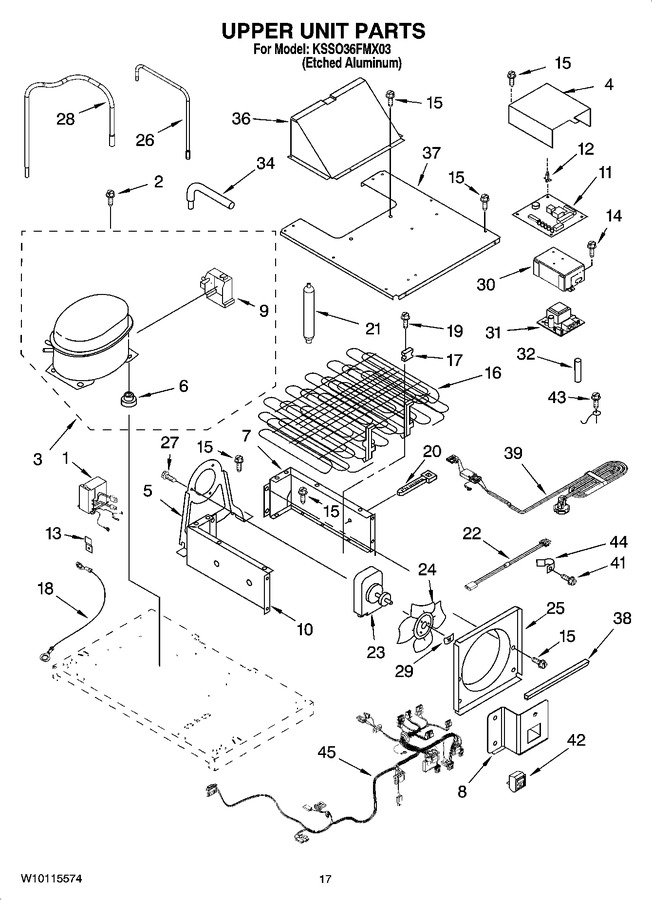

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: 2304175)			Immediately	$ 422.33
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.42
3	W10841139		Compressor (includes Items 6 & 9) (also Order 876765 Tube Kit)   (Replaces: 2302967)			Immediately	$ 481.44
4	2257354		Housing, Control Board		Appelez-nous	-
5	2215641		Bracket, Fan Motor		Appelez-nous	-
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.42
7	2266803		Shroud, Condenser (right)		Appelez-nous	-
8	2302969		Bracket, Switch		Appelez-nous	-
9	2215676		Terminal Cover				$ 89.87
10	2302973		Shroud, Condenser (left)		Appelez-nous	-
11	W10219463		Control Board   (Replaces: 2307028)				$ 291.62
12	WP2203075		Spacer (5)   (Replaces: 2203075)			Immediately	$ 17.91
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	WP489128		Screw   (Replaces: 8281149)				$ 10.88
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
16	2259307		Condenser				$ 165.43
17	943447		Grommet (4)		Appelez-nous	-
18	2310243		Wire, Jumper		Appelez-nous	-
19	487522		Screw		Appelez-nous	-
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
21	WPW10143759		Drier   (Replaces: 2317982)			Immediately	$ 30.78
22	2310207		Wire Assy. (condenser Fan)		Appelez-nous	-
23	W10181323		Motor, Fan   (Replaces: 2206036)			Immediately	$ 303.29
24	2190685		Blade, Fan				$ 52.00
25	2003169		Orifice, Fan		Appelez-nous	-
26	2300190		Tube, Drier Transition		Appelez-nous	-
27	8281160		Screw		Appelez-nous	-
28	2259301		Tube, Heat Loop Transition		Appelez-nous	-
29	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
30	2259349		Housing, Power Supply		Appelez-nous	-
31	WP2259350		Power Supply, Ingredient Care Center   (Replaces: 2259350)				$ 138.43
32	2000645		Sleeve, Condenser		Appelez-nous	-
34	W10528578		Process, Tube   (Replaces: 2194319)				$ 37.92
36	2209495		Cover, Fan		Appelez-nous	-
37	2259092		Cover, Condenser		Appelez-nous	-
38	2307907		Grommet, Edge		Appelez-nous	-
39	WP2310251		Service Cord   (Replaces: 2310251)				$ 84.70
41	W11624204		Screw   (Replaces: 486194)				$ 14.02
42	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 103.89
43	00487294		Screw, Ground   (Replaces: 487294)				$ 175.09
44	549193		Clamp-cord				$ 13.39
45	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
45	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
45	978028		Valve, Access (1/2)		Appelez-nous	-
45	978029		Valve Access (5/8``)				$ 93.85
45	978030		Valve, Access (3/4``)				$ 130.71
45	876764		Valve, Access(3/16``)			Immediately	$ 91.35
45	2310217		Wiring Harness, Unit Compartment		Appelez-nous	-
45	SF5516		Valve, Access (5/16``)   (Replaces: 978026)			Immediately	$ 18.94
