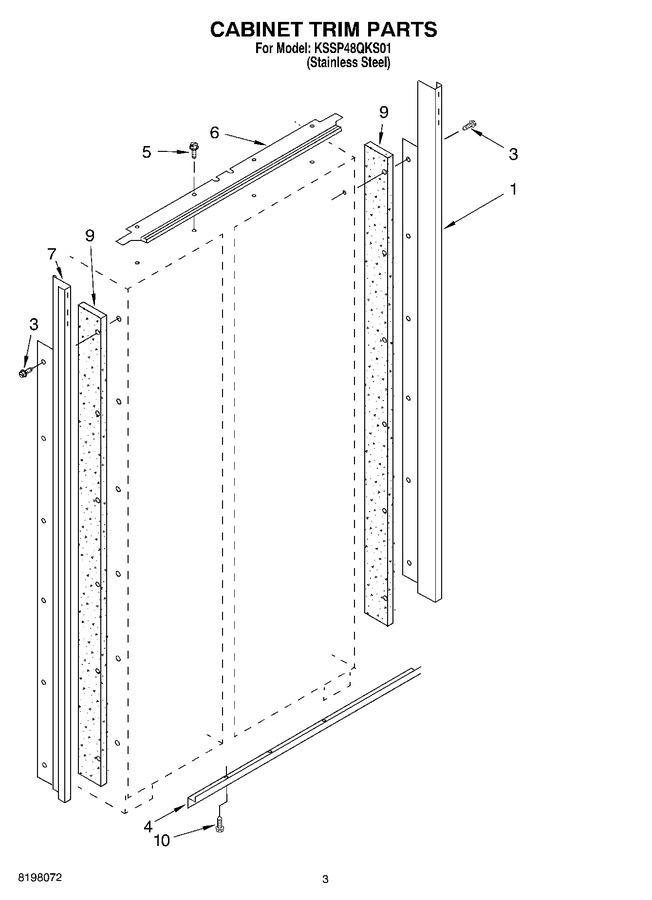

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215919S		Cabinet, Trim (right Side)		Appelez-nous	-
3	WP8281250		Screw   (Replaces: 8281250)				$ 10.88
4	2254726		Cabinet, Trim (bottom)		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 14.02
6	2003647		Cabinet, Trim Top		Appelez-nous	-
7	2215936S		Cabinet Trim (left Side)		Appelez-nous	-
9	2005925		Seal, Side Trim				$ 83.72
10	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
