SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Shelf


04 - Refrigerator Liner


05 - Control Panel


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Liner And Air Flow


09 - Motor And Ice Container


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker

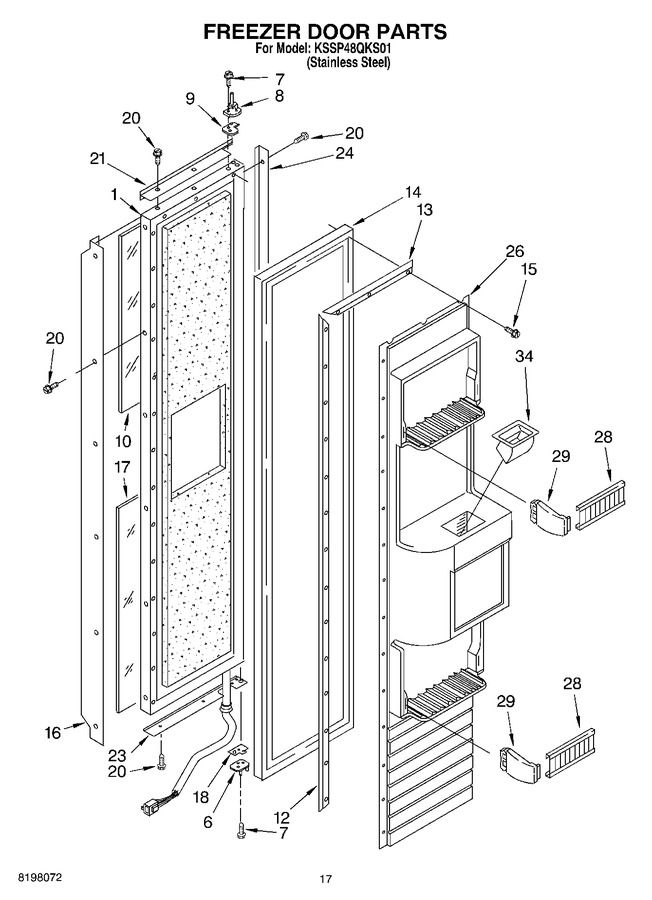

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254732B		Freezer Door Panel (includes Insulation)		Appelez-nous	-
6	2220810		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2220922		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	2209357		Panel, Decorative Upper		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188497		Door Gasket, Magnetic		Appelez-nous	-
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2005944		Handle, Door		Appelez-nous	-
17	2209354		Panel, Decorative Lower		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP8281250		Screw   (Replaces: 8281250)				$ 10.88
21	2005027		Trim (top)		Appelez-nous	-
23	2209422S		Trim (bottom)		Appelez-nous	-
24	2005964		Trim (side)		Appelez-nous	-
26	2209029		Panel, Interior Door		Appelez-nous	-
28	2195934		Trim, Door Shelf				$ 46.59
29	2209134		Trim, End Cap (right Side)				$ 10.05
29	2208954		Trim, Endcap (left Side)				$ 5.84
34	2208909		Ice Chute		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
