Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2215963S Grille Assembly Appelez-nous -
2 2209490 Cover, Unit Appelez-nous -
3 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

4 2256466 Back Panel   (Replaces: 2215830) Special Order $ 327.22

5 2209492 Guard, Wiring Appelez-nous -
6 2220946 Panel, Insert Appelez-nous -
8 2215678 Baffle-air, Condenser Appelez-nous -
10 2221297 Enclosure, Terminal Appelez-nous -
14 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

15 2187429 Wire Assembly Rc/fc Light Switch Appelez-nous -
16 488946 Clamp Special Order $ 21.47


    View Diagram in Separate Window     Print Icon   Print Part List

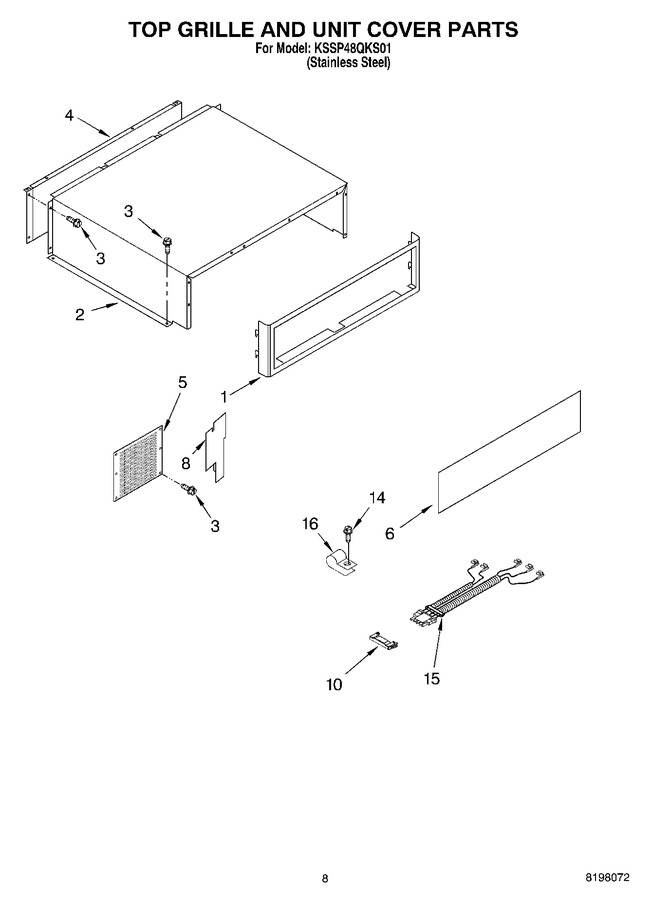

Diagram for KSSP48QKS01
