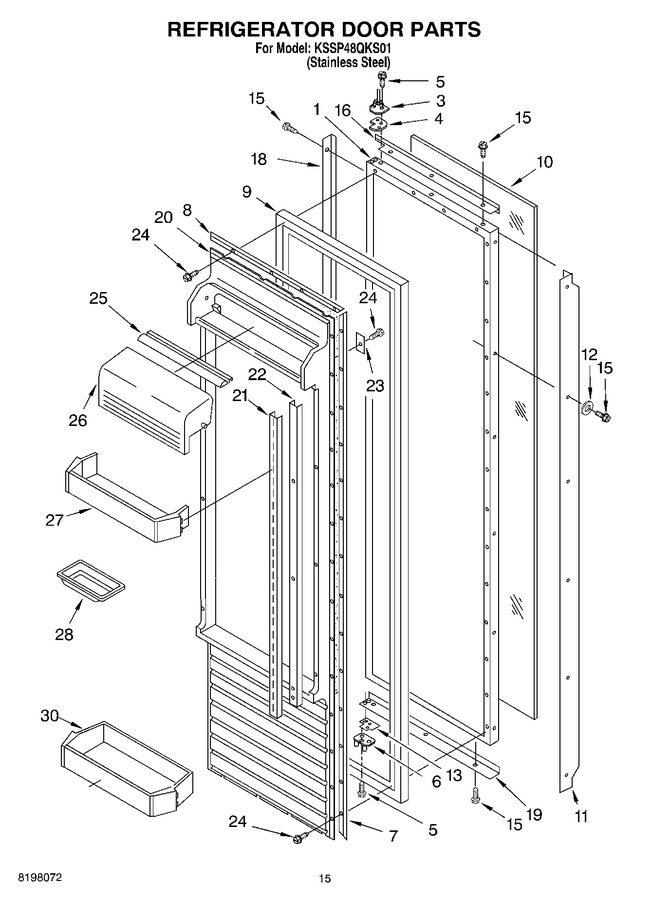

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201581		Refrigerator Door Panel		Appelez-nous	-
3	2220922		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-door, Top		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2220809		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188499		Door Gasket, Magnetic		Appelez-nous	-
10	2209351		Panel, Decorative		Appelez-nous	-
11	2005954		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer Bottom		Appelez-nous	-
15	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
16	2005018		Trim (top)		Appelez-nous	-
18	2005969		Trim (side)		Appelez-nous	-
19	2209419S		Trim (bottom)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.72
25	1113955		Gasket		Appelez-nous	-
26	2003465		Door, Utility Bin		Appelez-nous	-
27	1113974		Door Shelf (3)				$ 78.21
28	2165792		Butter Tray		Appelez-nous	-
30	2188333		Shelf, Gallon Door		Appelez-nous	-
