SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Shelf


04 - Refrigerator Liner


05 - Control Panel


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Liner And Air Flow


09 - Motor And Ice Container


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker

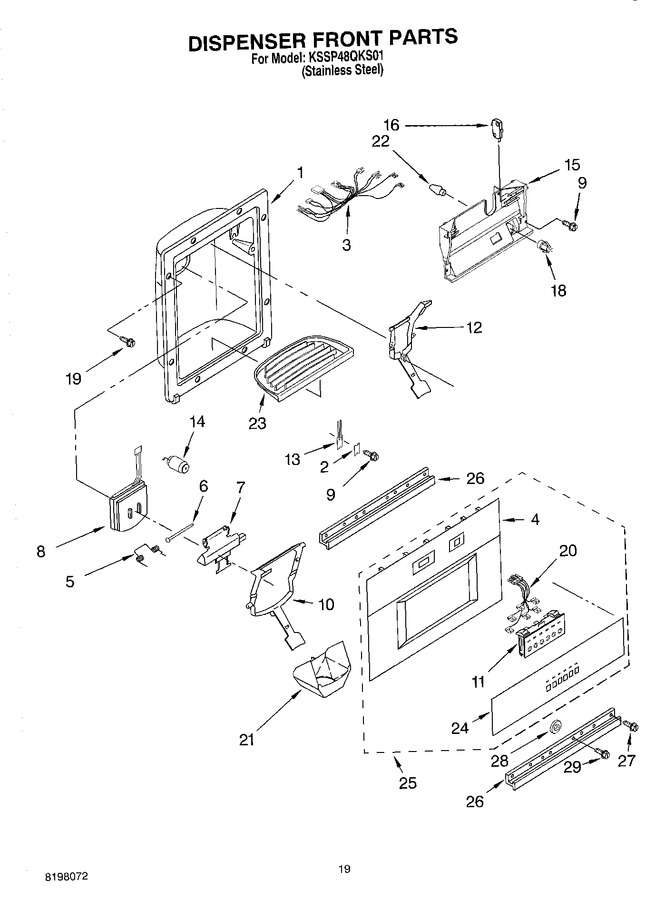

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
3	2221203		Wire Harness		Appelez-nous	-
5	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
6	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
7	2206423		Ice Door Mechanism		Appelez-nous	-
8	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 26.83
9	WP3400906		Screw   (Replaces: 489000)				$ 9.05
10	2180261		Lever, Ice Dispenser		Appelez-nous	-
11	WP2180236		Switch Assembly   (Replaces: 2180236)				$ 288.00
12	WPW10152859		Lever, Water Dispenser   (Replaces: 2180270)			Immediately	$ 102.82
13	WP2194719		Spring, Lever   (Replaces: 2194719)			Immediately	$ 12.36
14	2205686		Delay Mechanism		Appelez-nous	-
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 26.97
16	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 28.71
18	2180200		Lamp Holder				$ 103.59
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
20	2311650		Wire Assembly   (Replaces: 2187409)				$ 94.16
21	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
22	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 14.85
23	WP2180325		Grille, Overflow   (Replaces: 2180325)			Immediately	$ 72.45
25	2220988B		Front Cover Assembly (includes Items 4, 11, 20 & 24)		Appelez-nous	-
26	2208928		Trim, Front (2)		Appelez-nous	-
27	WP8281250		Screw 8-15 X 1/2   (Replaces: 8281250)				$ 11.42
28	487944		Washer		Appelez-nous	-
29	W10759522		Screw 8-15 X 3/4   (Replaces: 488568)				$ 8.24

    View Diagram in Separate Window       Print Part List
