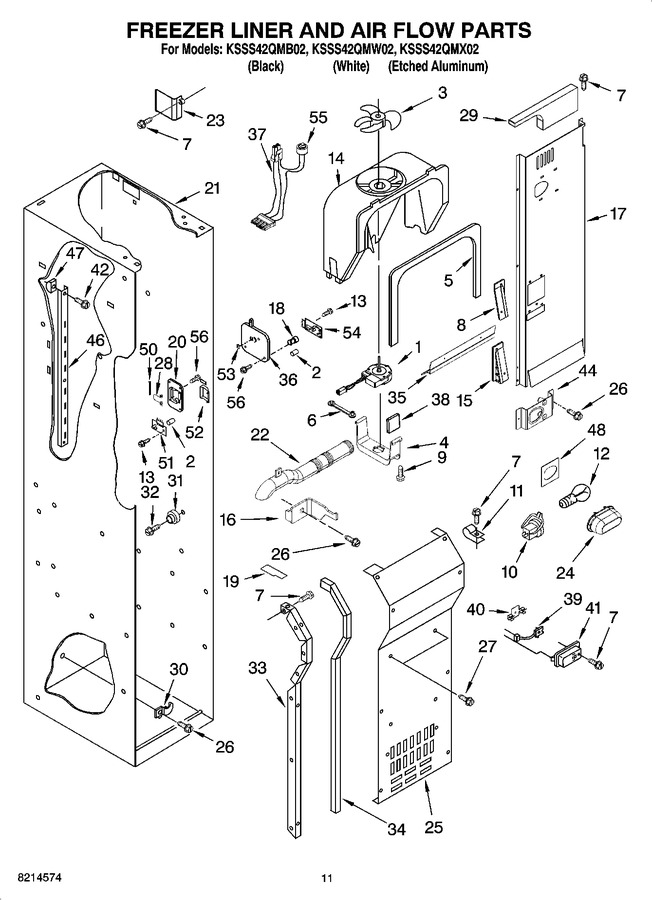

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | 2198665 | Tube, P.c. Board |
|
$ 21.52 | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 151.69 | |||||
| 5 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 96.23 | |||||
| 6 | W11669856 | Grommet (Replaces: 2223986) |
|
Immediately | $ 15.17 | ||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 8 | 2259464 | Wedge, Air Duct |
|
$ 90.84 | |||||
| 9 | 00487294 | Screw, Ground (Replaces: 487294) |
|
$ 175.09 | |||||
| 10 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 11 | 488937 | Clamp, Nylon |
|
- | |||||
| 12 | W11679940 | Light Bulb (2) (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 111.97 | ||||
| 15 | 2259465 | Wedge, Air Duct |
|
- | |||||
| 16 | 2302925 | Bracket, Vent Tube |
|
- | |||||
| 17 | 2306046 | Air Duct |
|
- | |||||
| 18 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.18 | |||||
| 19 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 19 | 2209480 | Block, Fan Scroll (right) |
|
- | |||||
| 20 | WP2215650 | Cover, Emitter (Replaces: 2215650) |
|
$ 202.84 | |||||
| 21 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 22 | 2302932 | Tube, Vent |
|
- | |||||
| 23 | 2259025 | Cover, Air Outlet |
|
$ 87.96 | |||||
| 24 | 2259367 | Light Shield (2) |
|
- | |||||
| 25 | 2314043 | Cover, Evaporator |
|
- | |||||
| 26 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 28 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 29 | 2309283 | Deflector, Air Duct |
|
- | |||||
| 30 | 1112260 | Support, Evaporator (2) |
|
- | |||||
| 31 | WP2196483 | Stud, Shelf (20) (Replaces: 2196483) |
|
$ 10.35 | |||||
| 32 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 | |||||
| 33 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 33 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 120.51 | |||||
| 34 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 22.43 | |||||
| 35 | 2302850 | Support, Air Duct |
|
- | |||||
| 36 | 2259493 | Cover, Receiver |
|
$ 90.12 | |||||
| 37 | 2187673 | Harness, Evap Fan (includes Item 55) |
|
- | |||||
| 38 | W11553819 | Insulation (4) (Replaces: 2220241) |
|
Immediately | $ 14.07 | ||||
| 39 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 40 | 2209204 | Clip, Thermistor |
|
- | |||||
| 41 | 1116793 | Cover, Thermistor |
|
$ 14.63 | |||||
| 42 | 2006475 | Screw, |
|
- | |||||
| 44 | 2257571 | Bracket, Light |
|
- | |||||
| 46 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 77.16 | |||||
| 47 | 2259445 | Screw Support |
|
- | |||||
| 48 | 2302777 | Seal-light, Socket |
|
- | |||||
| 50 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 51 | W11629974 | P.c. Board Emitter (Replaces: 2220398) |
|
Immediately | $ 401.07 | ||||
| 52 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 48.27 | ||||
| 53 | 2255563 | Slide, Icemaker Shut Off |
|
$ 79.74 | |||||
| 54 | W10757851 | P.c. Board, Receiver (Replaces: 2255114) |
|
Immediately | $ 311.76 | ||||
| 55 | WP2306462 | Defrost, Bi-metal (Replaces: 2306462) |
|
$ 118.88 | |||||
| 56 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 9.84 |
