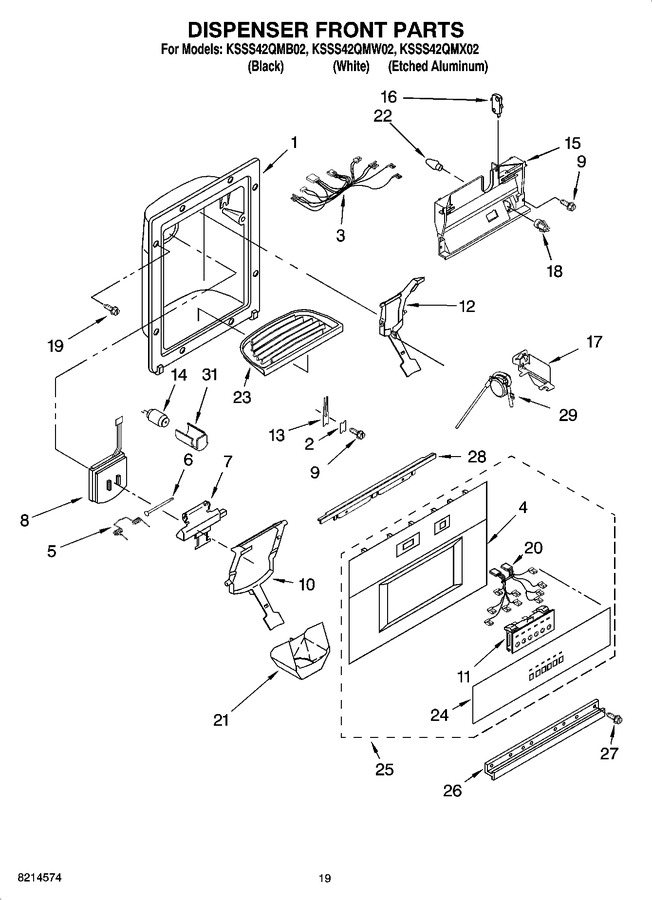

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 3 | 2187755 | Wire Assembly |
|
- | |||||
| 5 | WPW10224328 | Spring, Torsion (Replaces: 2256199) |
|
$ 87.40 | |||||
| 6 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 7 | 2304355 | Ice Door Mechanism |
|
- | |||||
| 8 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 9 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 10 | 2259396W | Lever, Ice Dispenser (white) |
|
- | |||||
| 10 | 2259396B | Lever, Ice Dispenser (black) |
|
$ 54.38 | |||||
| 12 | 2259395B | Lever, Water Dispenser (black) |
|
$ 52.90 | |||||
| 12 | 2259395W | Lever, Water Dispenser (white) |
|
- | |||||
| 13 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 14 | 2205686 | Delay Mechanism |
|
- | |||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 26.97 | ||||
| 16 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 17 | 2259209 | Bracket, Anti-drip Valve |
|
$ 91.43 | |||||
| 18 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 20 | 2309372 | Harness, Switch Jumper Assembly |
|
- | |||||
| 21 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 22 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 23 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 23 | WP2206670W | Grille, Overflow (white) (Replaces: 2206670W) |
|
$ 72.24 | |||||
| 25 | 2309378W | Front Cover Assembly (includes Items 4, 11, 20 & 24) (white) |
|
- | |||||
| 25 | 2309378B | Front Cover Assembly (includes Items 4, 11, 20 & 24) (black) |
|
- | |||||
| 26 | 2208927 | Trim, Front (bottom) (black) |
|
- | |||||
| 26 | 2208918 | Trim, Front (bottom) (white) |
|
- | |||||
| 27 | W10851443 | Screw 8-15 X 1/2 (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 27 | W10825422 | Screw 8-15 X 1/2 (white) (Replaces: 8281251) |
|
$ 11.36 | |||||
| 27 | WP8281250 | Screw 8-15 X 1/2 (stainless Steel) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 28 | 2266919B | Trim, Front (top) (black) |
|
- | |||||
| 28 | 2266919W | Trim, Front (top) (white) |
|
- | |||||
| 29 | 2257420 | Valve, Antidrip |
|
- | |||||
| 31 | 2252127 | Sleeve, Delay Mechanism |
|
$ 22.00 |
