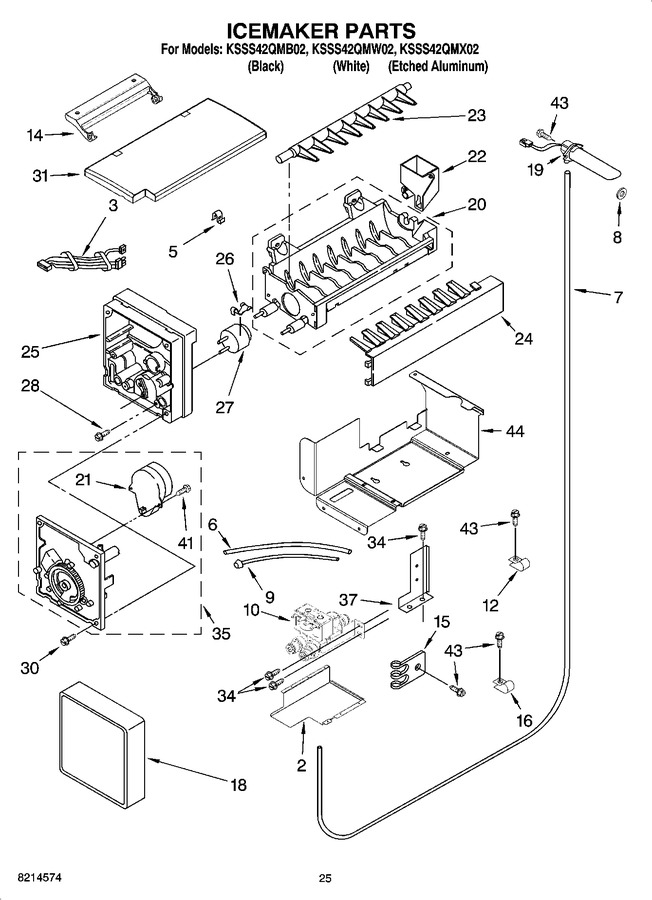

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2300104 | Cover-bottom, Electrical |
|
- | |||||
| 3 | 2187717 | Wire Assembly, Icemaker |
|
$ 60.83 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | 2214613 | Tube, Filter Inlet |
|
- | |||||
| 7 | 2316756 | Water Inlet Tube Assembly |
|
- | |||||
| 8 | 2302758 | Seal Gasket |
|
- | |||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2302719) |
|
Immediately | $ 31.57 | ||||
| 10 | WP2188786 | Valve, Solenoid (Replaces: 2188786) |
|
$ 246.59 | |||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 14 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | 488937 | Clamp, Tube |
|
- | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 19 | W10460127 | Tube, Water Inlet (Replaces: 2259417) |
|
$ 198.34 | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | W10297244 | Ice Stripper (Replaces: 2198598) |
|
$ 73.14 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 628397) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | WPW10504753 | Cover, Icemaker (Replaces: 2317040) |
|
$ 91.95 | |||||
| 34 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.19 | |||||
| 35 | W10190935 | Module Assembly (includes Items 21 & 41) (Replaces: 626680) |
|
Immediately | $ 110.07 | ||||
| 37 | 2306151 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 44 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | 2258231 | Ice Container Assembly Black Acrylic Static Cleaner Part No. 978849 |
|
- | |||||
| 100 | 2220874 | Front Panel Kit (stainless Steel) |
|
- | |||||
| 100 | 2220868 | Front Panel Kit (black) |
|
- | |||||
| 100 | N/A | (optional Parts Only) |
|
- | |||||
| 100 | WPW10277448 | Complete Icemaker Assembly (Replaces: 2266836) |
|
Immediately | $ 231.43 | ||||
| 100 | 2220865 | Front Panel Kit (white) |
|
- |
