SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

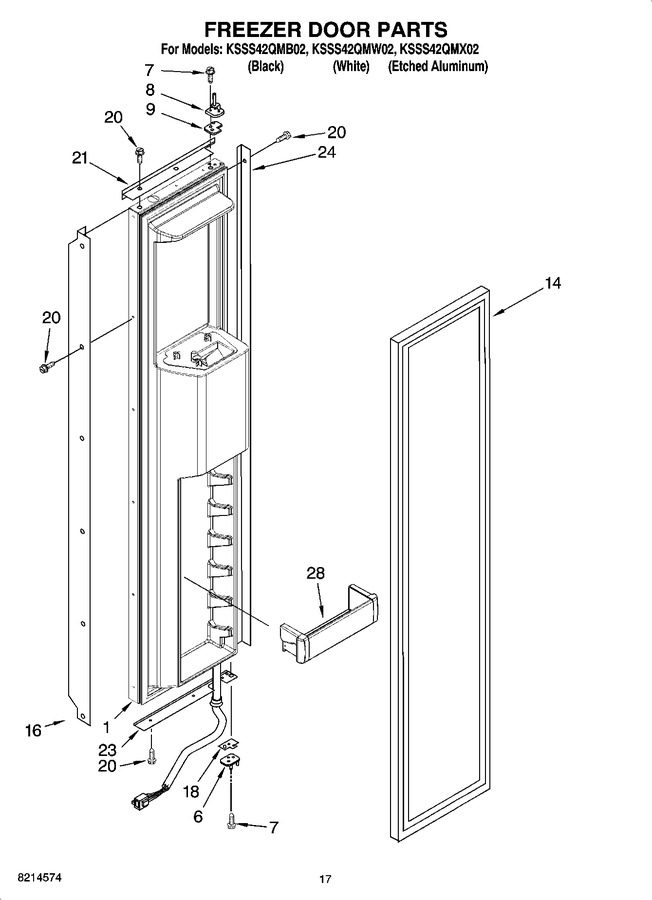

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252324W		Freezer Door Panel (includes Insulation) (white L2307844b Black)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 60.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 297.62
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)			Immediately	$ 313.96
16	2256472W		Handle, Door (white)		Appelez-nous	-
16	2256472		Handle, Door (etched Aluminum)		Appelez-nous	-
16	2256472B		Handle, Door (black)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
20	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
21	2005020		Trim (top) (etched Aluminum)		Appelez-nous	-
21	2005023		Trim (top) (white)		Appelez-nous	-
21	2005886		Trim (top) (black)		Appelez-nous	-
23	2215985W		Trim (bottom) (white)		Appelez-nous	-
23	2215985		Trim (bottom) (etched Aluminum)		Appelez-nous	-
23	2215985B		Trim (bottom) (black)		Appelez-nous	-
24	2005963		Trim (side) (white)		Appelez-nous	-
24	2005962		Trim (side) (etched Aluminum)		Appelez-nous	-
24	2005966		Trim (side) (black)		Appelez-nous	-
28	W10323602		Bin, Shelf F.c.(3)   (Replaces: 2222776)				$ 93.36

    View Diagram in Separate Window       Print Part List
