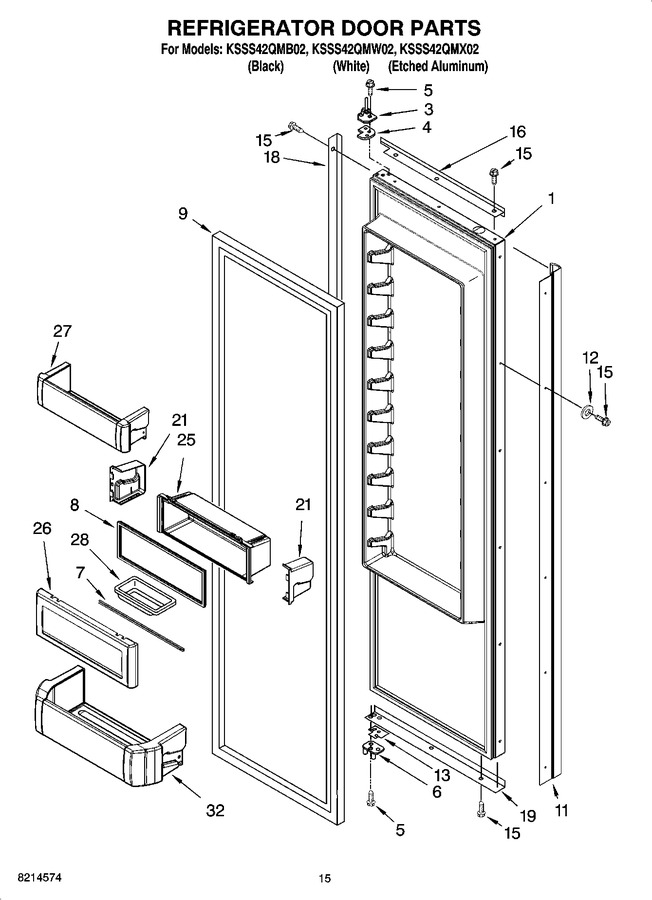

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 297.62
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2302878		Hinge Assembly, Bottom			Immediately	$ 86.68
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
8	W11448696		Gasket, Bin   (Replaces: 2222982)				$ 153.99
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 314.57
11	2256473B		Handle, Door (black)		Appelez-nous	-
11	2256473		Handle, Door (etched Aluminum)		Appelez-nous	-
11	2256473W		Handle, Door (white)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2257637		Door Spacer, Bottom				$ 15.45
15	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
15	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
15	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
16	2005014		Trim (top) (white)		Appelez-nous	-
16	2005840		Trim (top) (black)		Appelez-nous	-
16	2005011		Trim (top) (etched Aluminum)		Appelez-nous	-
18	2005967		Trim, Side (etched Aluminum)		Appelez-nous	-
18	2005968		Trim (side) (white)		Appelez-nous	-
18	2005971		Trim, Side (black)		Appelez-nous	-
19	2215994		Trim (bottom) (etched Aluminum)		Appelez-nous	-
19	2215994B		Trim (bottom) (black)		Appelez-nous	-
19	2215994W		Trim (bottom) (white)		Appelez-nous	-
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.19
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.19
25	W10323042		Bin, Utility   (Replaces: 2222922)				$ 213.27
26	W11448696		Door, Utility Bin   (Replaces: 2222925)				$ 153.99
27	W10323599		Door Shelf   (Replaces: 2222773)				$ 139.63
28	2165792		Butter Tray		Appelez-nous	-
32	W10323747		Shelf, Gallon Door   (Replaces: 2222770)				$ 138.44
