01 - Body


02 - Control Panel


03 - Door Assembly (large)


04 - Door Assembly (small)


05 - Griddle Assembly


06 - Oven Assembly (large)


07 - Oven Assembly (small)


08 - Supplemental Information


09 - Surface Burner Assembly


10 - Top/burner Valves

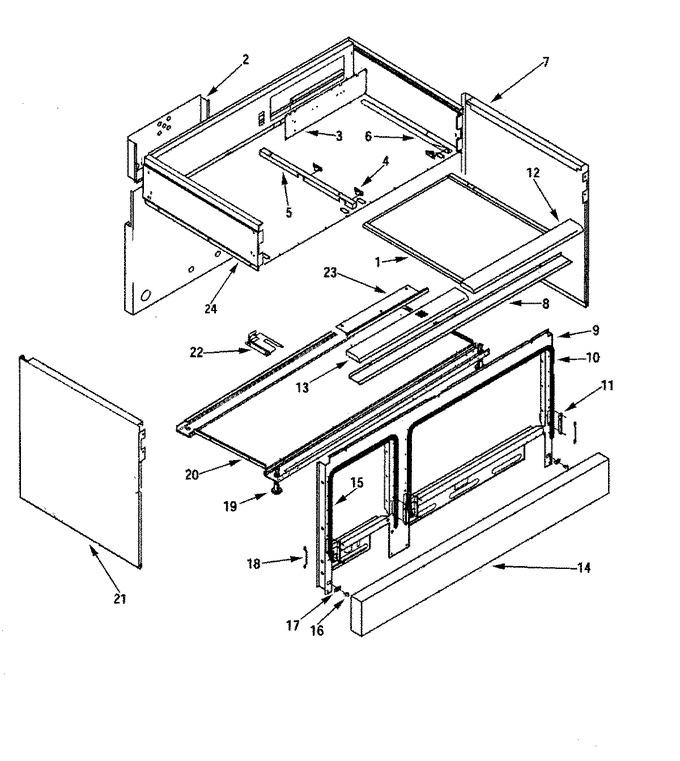

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001403		Drip Pan Assembly (rt)	10	Appelez-nous	-
2	73001408		Housing, Motor	10	Appelez-nous	-
3	73001406		Panel, Service	10	Appelez-nous	-
4	73001059		Roller, Drip Pan	10	Appelez-nous	-
5	73001410		Guide, Center	10	Appelez-nous	-
6	73001405		Guide, Drip Pan	10	Appelez-nous	-
7	73001390		Panel, Side (rt)	10	Appelez-nous	-
8	73001219		Shield, Heat (lwr)	10	Appelez-nous	-
9	73001509		Frame, Front	10	Appelez-nous	-
10	73001056		Gasket, Door (27``)	10	Appelez-nous	-
11	73001063		Receptacle, Hinge	10	Appelez-nous	-
12	73001404		Handle, Drip Pan	10	Appelez-nous	-
13	73001510		Handle, Drip Pan (lt)	10	Appelez-nous	-
14	73001397		Kickplate	10	Appelez-nous	-
15	73001398		Gasket (12`oven)	10	Appelez-nous	-
16	73001064		Catch (female)	10	Appelez-nous	-
17	73001061		Strike (male)	10	Appelez-nous	-
18	73001513		Retainer, Gasket	10	Appelez-nous	-
19	73001083		Leg, Leveling	10	Appelez-nous	-
20	73001436		Base	10	Appelez-nous	-
21	73001391		Panel, Side (lt)	10	Appelez-nous	-
22	WP73001214		Bracket, Anti-tip   (Replaces: 73001214)	10			$ 146.84
23	73001511		Bracket, Handle	10	Appelez-nous	-
24	73001407		Box, Venturi	10	Appelez-nous	-
