SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door Assembly (large)


04 - Door Assembly (small)


05 - Griddle Assembly


06 - Oven Assembly (large)


07 - Oven Assembly (small)


08 - Supplemental Information


09 - Surface Burner Assembly


10 - Top/burner Valves

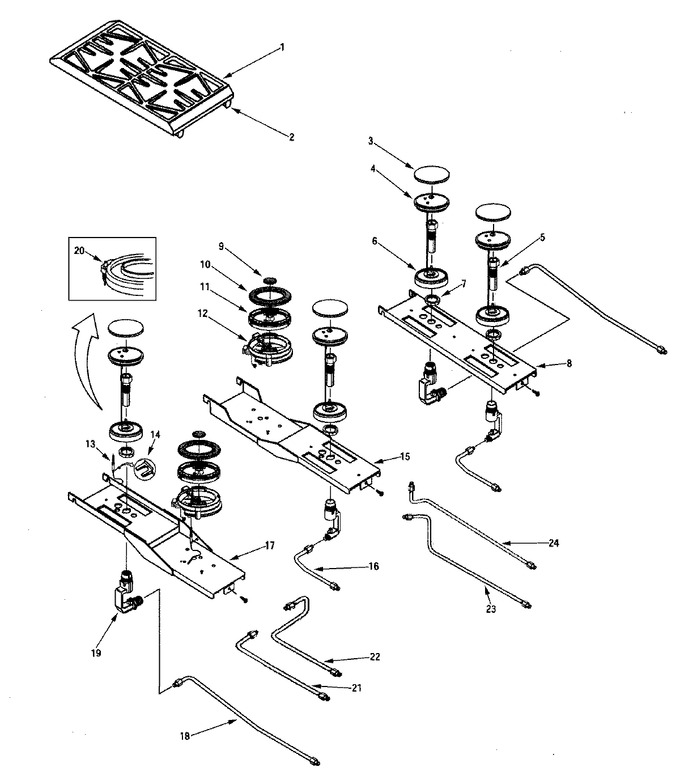

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001005		Grate	10	Appelez-nous	-
2	WP73001276		Foot, Grate   (Replaces: 73001276)	10			$ 16.50
3	73001274		Cap, Burner	10	Appelez-nous	-
4	73001275		Port Ring Assembly	10	Appelez-nous	-
5	73001286		Venturi	10	Appelez-nous	-
6	73001285		Burner	10			$ 210.89
7	73001280		Nut	10			$ 42.49
8	73001418		Hanger, Burner (rt)	10	Appelez-nous	-
9	73001337		Cap, Burner (inner)	10	Appelez-nous	-
10	73001338		Cap, Burner (outer)	10	Appelez-nous	-
11	73001336		Spreader, Flame	10	Appelez-nous	-
12	73001614		Orifice, Main (no.79 Lp)	10			$ 43.21
12	73001287		Burner (dual Flow/nat)	10	Appelez-nous	-
12	73001551		Igniter/clip Asy (dual Flow)	10			$ 75.19
12	73001613		Orifice, Main (no.57 Lp)	10			$ 42.22
13	WP73001283		Spring, Igniter   (Replaces: 73001283)	10			$ 117.53
14	73001284		Clip, Igniter	10	Appelez-nous	-
15	73001422		Hanger, Burner (ctr)	10	Appelez-nous	-
16	73001347		Tubing, Front	10	Appelez-nous	-
17	73001421		Hanger, Burner (lt)	10	Appelez-nous	-
18	73001442		Tubing, Rear	10	Appelez-nous	-
19	210542-1		Holder, Orifice (lp)	10	Appelez-nous	-
20	WP73001283		Igniter   (Replaces: 73001282)	10			$ 117.53
21	73001297		Tube, Simmer Front (dual Flow)	10	Appelez-nous	-
21	73001298		Tube, End (smr)	10	Appelez-nous	-
22	73001296		Tube, Main Front (dual Flow)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
