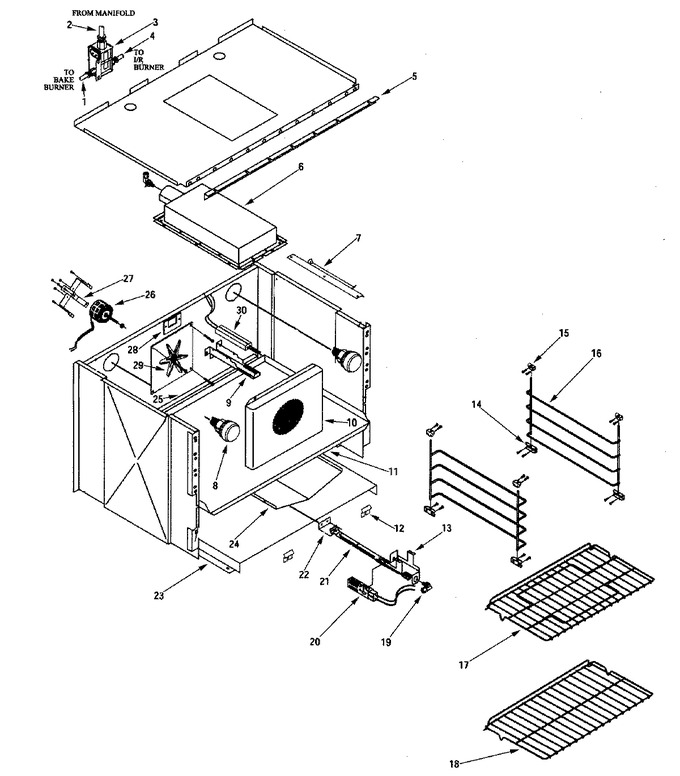

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001435		Tubing, Valve/burner	10	Appelez-nous	-
2	73001096		Tubing, Manifold To Dual Valve	10	Appelez-nous	-
3	73001049		Valve, Dual Thermal Gas	10			$ 281.26
3	73001615		Loxit Nut (3/8)	10	Appelez-nous	-
4	73001396		Tubing (13 1/8``)	10	Appelez-nous	-
5	73001437		Guard,flue	10	Appelez-nous	-
6	73001090		Burner Assy., Infra Red	10	Appelez-nous	-
7	73001506		Holder, Bulb	10	Appelez-nous	-
8	WP74011278		Light Assy., Oven   (Replaces: 73001071)	10			$ 106.63
9	73001460		Clamp, Igniter (broil)	10	Appelez-nous	-
10	73001223		Cover, Convection Wheel	10	Appelez-nous	-
11	73001107		Liner, Oven Bottom	10	Appelez-nous	-
12	73001092		Clip, Air Adjustment	10	Appelez-nous	-
13	73001455		Bracket, Igniter	10	Appelez-nous	-
14	73001205		Clip, Rack Support (l-shape)	10	Appelez-nous	-
15	73001206		Clip, Rack Support (u-shape)	10	Appelez-nous	-
16	73001017		Support, Oven Rack	10	Appelez-nous	-
17	73001504		Rack, Oven Broil	10	Appelez-nous	-
18	73001110		Rack, Oven (27``)	10	Appelez-nous	-
19	73001122		Elbow, Brass	10	Appelez-nous	-
20	73001165		Igniter, 12`` Oven (rear)	10			$ 243.00
21	73001036		Burner, Oven 27`` Rg	10	Appelez-nous	-
22	73001456		Bracket, Burner Support	10	Appelez-nous	-
23	73001459		Channel, Air	10	Appelez-nous	-
24	73001458		Flame Spreader	10	Appelez-nous	-
25	73001507		Support, Oven Bottom	10	Appelez-nous	-
26	73001069		Motor, Convection	10	Appelez-nous	-
27	73001243		Bracket, Motor	10	Appelez-nous	-
28	73001508		Cover	10	Appelez-nous	-
29	73001125		Blade, Convection	10	Appelez-nous	-
30	73001068		Igniter, Broil	10			$ 242.85
