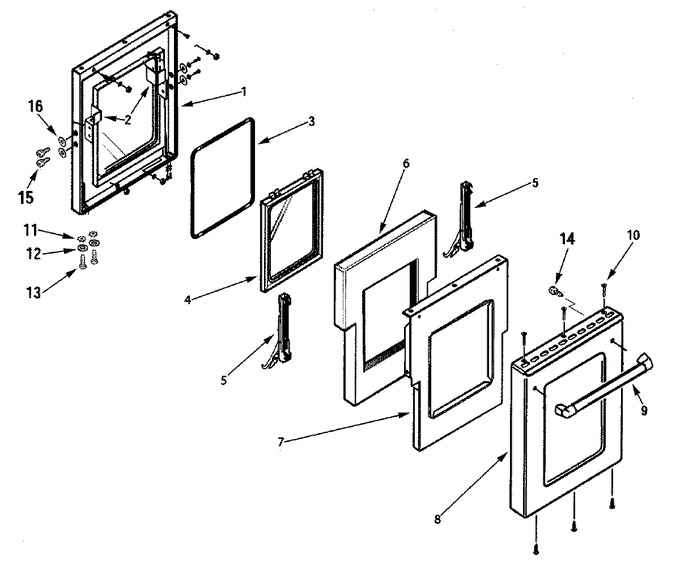

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10322392		Liner, Door (12`) Serial No. 10002639lp And After		Appelez-nous	-
1	73001486		Liner, Door (12``)	10	Appelez-nous	-
2	73001517		Bracket, Hinge (rt)	10			$ 59.19
2	73001262		Bracket, Hinge (lt)	10			$ 44.39
3	73001256		Gasket, Window	10	Appelez-nous	-
4	W10324642		Window Pack Serial No. 10002639lp And After		Appelez-nous	-
4	73001518		Window Pak	10	Appelez-nous	-
5	W10203272		Hinge, Door 12` Serial No. 10002639lp And After		Appelez-nous	-
5	73001062		Hinge, Door 12``	10	Appelez-nous	-
6	73001519		Insulation, Door	10	Appelez-nous	-
7	73001487		Retainer,insulation (12``)	10	Appelez-nous	-
7	W10324644		Retainer, Insulation (12`) Serial No 10002639lp And After		Appelez-nous	-
8	W10322393		Panel/glass Assembly (12`) Serial No 10002639lp And After		Appelez-nous	-
8	73001488		Panel/glass Assembly (12``)	10	Appelez-nous	-
9	WPW10001180		Screw (no.10-24 X 1/2)   (Replaces: 73001558)	10			$ 8.05
9	73001485		Handle, Door (12``)	10	Appelez-nous	-
10	73001258		Screw (8-32 X 1``)-10 Pack	10	Appelez-nous	-
11	73001595		Washer (tooth No.10)	10	Appelez-nous	-
12	73001542		Washer (no.10 7/16``)	10	Appelez-nous	-
13	WPW10001180		Screw (no.10-24 X 1/2)   (Replaces: 73001558)	10			$ 8.05
14	WPW10031790		Screw (no.10 X 1/2)   (Replaces: 73001557)	10		Immediately	$ 7.87
15	73001131		Screw (no.10 X 3/4)	10	Appelez-nous	-
16	73001596		Washer (flat 3/4``)	10	Appelez-nous	-
