Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 73001503 Cover, Griddle Flue 10 Appelez-nous -
2 73001146 Cover, Griddle 10 Appelez-nous -
3 73001462 Griddle Plate Assembly 10 Appelez-nous -
4 73001468 Cover, Griddle Trim 10 Appelez-nous -
5 73001104 Bracket, Griddle Igniter 10 Appelez-nous -
6 73001165 Igniter, 12`` Oven (rear) 10 Special Order $ 243.00

7 73001467 Tubing (grid/grille) 10 Appelez-nous -
8 73001466 Bracket, Valve 10 Appelez-nous -
9 73001108 Valve, Single Thermal 10 Appelez-nous -
9 73001127 Orifice (no.55 Lp) 10 Special Order $ 43.41

10 73001119 Liner, Drip Pan 10 Appelez-nous -
11 73001465 Baffle, Griddle 10 Appelez-nous -
12 73001035 Burner, Broil & Griddle 10 Appelez-nous -
13 73001128 Screw, Level 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

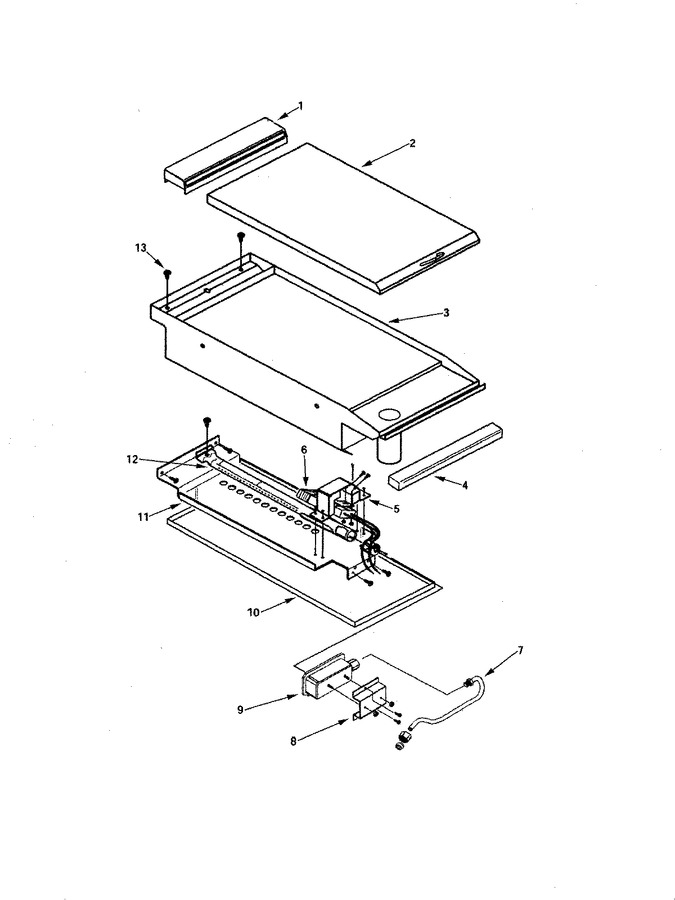

Diagram for PRG4810LP
