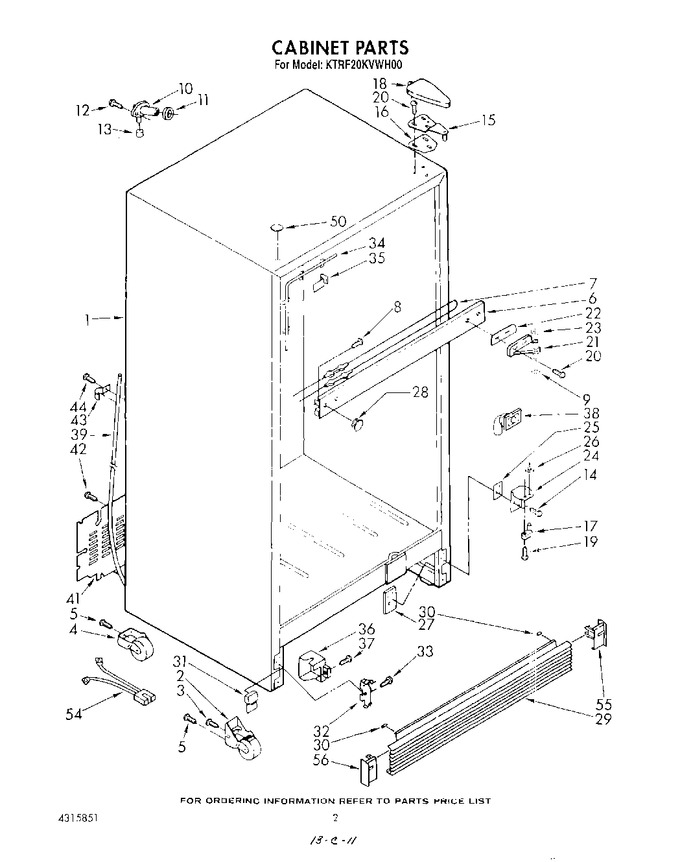

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	836067		Center Rail (white)		Appelez-nous	-
6	989911		Center Rail (almond)		Appelez-nous	-
6	1100303		Center Rail (toast)		Appelez-nous	-
6	1100304		Center Rail (platinum)		Appelez-nous	-
7	989256		Heater, Mullion		Appelez-nous	-
8	488624		Screw, 8 X 3/8		Appelez-nous	-
8	487470		Screw (repair)		Appelez-nous	-
9	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
10	WP2196157		Fitting, Water Tube   (Replaces: 841907)			Immediately	$ 12.59
11	WP1106508		Seal, Gasket   (Replaces: 1103059)			Immediately	$ 10.43
12	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.57
13	WP487996		Cap   (Replaces: 487996)				$ 8.67
14	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
14	488949		Screw (repair)		Appelez-nous	-
15	842039		Hinge, Top		Appelez-nous	-
16	836192		Shim, Hinge		Appelez-nous	-
17	654366		Hinge Pin, Bottom				$ 27.15
18	989194		Hinge Cover (almond)		Appelez-nous	-
18	1100173		Hinge Cover (platinum)		Appelez-nous	-
18	1100172		Hinge Cover (toast)		Appelez-nous	-
18	842010		Hinge Cover (white)		Appelez-nous	-
19	489218		Screw		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
20	488949		Screw (repair)		Appelez-nous	-
21	836153		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP488296		Washer, 11/64 Nylon   (Replaces: 488296)				$ 7.55
24	1115908		Hinge, Bottom		Appelez-nous	-
25	836196		Shim, Hinge		Appelez-nous	-
26	489200		Washer				$ 7.75
27	836162		Tap Plate		Appelez-nous	-
28	1100174		Hole Plug (toast)		Appelez-nous	-
28	835974		Hole, Plug (white)		Appelez-nous	-
28	989193		Hole, Plug (almond)		Appelez-nous	-
28	1100175		Hole Plug (platinum)		Appelez-nous	-
29	1107194		Exterior, Grille		Appelez-nous	-
30	1107614		Bumper, Grille		Appelez-nous	-
31	839178		Corner, Filler Grille		Appelez-nous	-
32	989068		Clip, Grille		Appelez-nous	-
33	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
34	936075		Heater, Stile		Appelez-nous	-
35	935663		Clip, Heater		Appelez-nous	-
36	549947		Box, Junction		Appelez-nous	-
37	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
38	841687		Drain Fitting		Appelez-nous	-
39	8316810		Tube, Drain   (Replaces: 509638)				$ 125.72
41	850459		Cover, Unit Compartment		Appelez-nous	-
42	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
43	836077		Clamp, Tube		Appelez-nous	-
44	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
50	1100177		Hole Plug (2) (platinum)		Appelez-nous	-
50	989195		Hole Plug (2) (almond)		Appelez-nous	-
50	842031		Hole Plug (2) (white)		Appelez-nous	-
50	1100176		Hole Plug (2) (toast)		Appelez-nous	-
54	548734		Wire Assembly (water Valve)		Appelez-nous	-
55	1107443		Grille, End Cap (r.s)		Appelez-nous	-
56	1107444		Grille, End Cap (l.s.)		Appelez-nous	-
