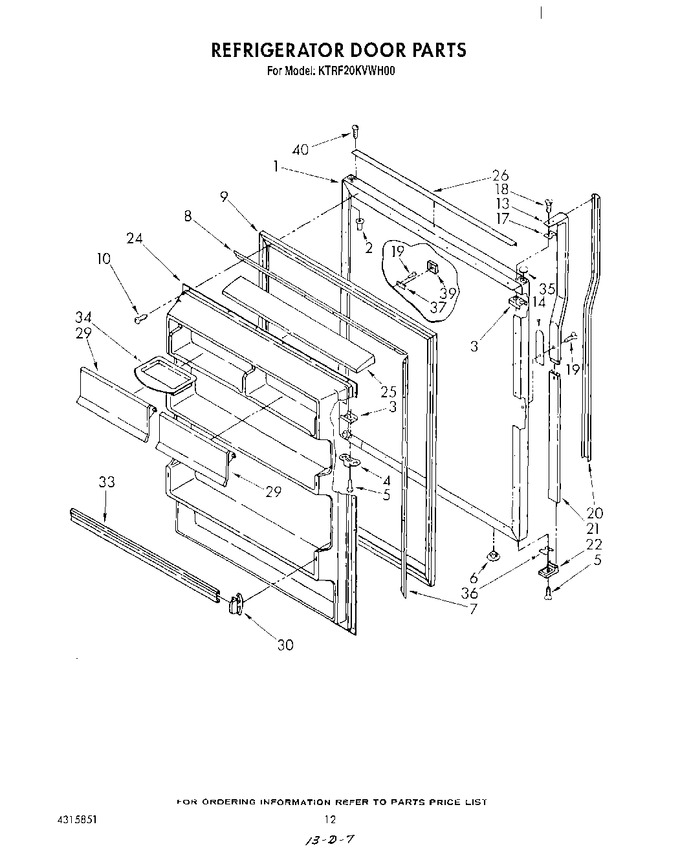

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944312		Refrigerator Door Panel (almond)		Appelez-nous	-
1	944308		Refrigerator Door Panel (white)		Appelez-nous	-
1	1103191		Refrigerator Door Panel (toast)		Appelez-nous	-
1	1103192		Refrigerator Door Panel (platinum)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	489221		Screw (repair)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
6	534927		Hole Plug (2) (white)		Appelez-nous	-
6	1100196		Hole Plug (2) (toast)		Appelez-nous	-
6	989197		Hole Plug (2) (almond)		Appelez-nous	-
6	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
7	836117		Retainer, Gasket Side (2)		Appelez-nous	-
8	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
9	2188450A		Door, Gasket Magnetic   (Replaces: 986702)				$ 284.09
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
11	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
13	1107230		Handle, Center		Appelez-nous	-
14	1107650		Shim, Center Handle		Appelez-nous	-
17	1107192		Spacer Handle Door		Appelez-nous	-
18	WP488920		Screw   (Replaces: 489219)				$ 7.98
18	489250		Screw (repair)		Appelez-nous	-
19	WP488729		Screw   (Replaces: 489222)			Immediately	$ 8.28
20	1117543		Insert, Handle		Appelez-nous	-
21	1107209		Retainer, Insert		Appelez-nous	-
22	1107236		End Cap		Appelez-nous	-
24	938745		Interior, Door Panel		Appelez-nous	-
25	849802		Door Dike		Appelez-nous	-
26	1107199		Trim Door (top)		Appelez-nous	-
29	1107275		Door, Utility		Appelez-nous	-
30	839904		Retainer, Trim (4)				$ 5.65
33	1117560		Trim, Shelf (2)		Appelez-nous	-
34	520747		Tray, Butter		Appelez-nous	-
35	989196		Hole Plug (almond)		Appelez-nous	-
35	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
35	1100188		Hole Plug (toast)		Appelez-nous	-
35	1100189		Hole Plug (platinum)		Appelez-nous	-
36	1107229		Shim, End Cap		Appelez-nous	-
37	1107329		Clip, Medallion		Appelez-nous	-
39	1107226		Handle Plug (white)		Appelez-nous	-
39	1107722		Handle Plug (almond)		Appelez-nous	-
39	1107720		Handle Plug (toast)		Appelez-nous	-
39	1107721		Handle Plug (platinum)		Appelez-nous	-
40	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
40	876370		Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
40	WP488921		Screw   (Replaces: 489224)			Immediately	$ 8.24
40	489221		Screw (repair)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
40	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	799832		Kit, Porcelain Repair		Appelez-nous	-
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
40	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
40	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	LIT4315851		List, Parts		Appelez-nous	-
	LIT1117699		Tech Sheet		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT1117833		Energy Guide		Appelez-nous	-
	LIT1117827		Guide, Use & Care		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
