SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Shelf


05 - Unit


06 - Liner


07 - Freezer Door


08 - Refrigerator Door , Not Illustrated

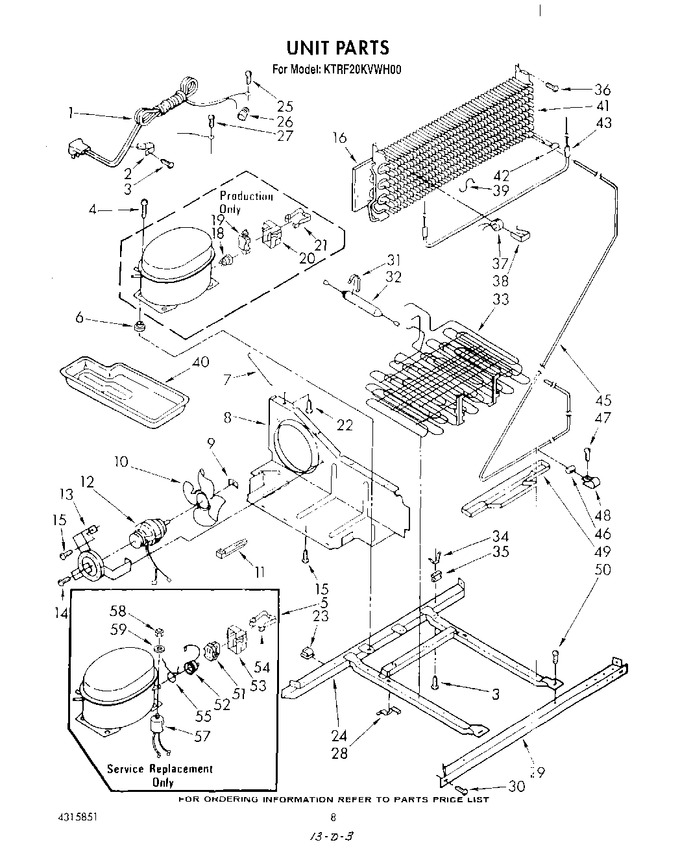

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 14.06
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
5	482981		Compressor (includes Items 51, 52, 53, 54, 55, 57, 58 & 59) (also Order 876765 Tube Kit)		Appelez-nous	-
6	876811		Grommet (4)   (Replaces: 1108038)				$ 7.79
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 8.43
10	989524		Fan		Appelez-nous	-
11	851095		Strap		Appelez-nous	-
12	833697		Motor   (Replaces: 946539)			Immediately	$ 88.15
13	548695		Bracket, Motor		Appelez-nous	-
14	681390		Screw   (Replaces: 489019)				$ 13.71
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	981736		Baffle, Evaporator		Appelez-nous	-
18	1105163		Overload		Appelez-nous	-
19	946615		Relay		Appelez-nous	-
20	1108115		Case, Relay		Appelez-nous	-
21	938384		Spring, Case		Appelez-nous	-
22	488978		Screw		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	945457		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Wire Connector		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	941697		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
33	943480		Condenser & Precooler		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	943447		Grommet (4)		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
37	WP4387489		Defrost, Bimetal   (Replaces: 989589)				$ 108.99
38	513584		Clamp		Appelez-nous	-
39	851358		Support, Heater		Appelez-nous	-
40	842041		Tray, Evaporating				$ 64.92
41	946507		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	989612		Heater, Defrost		Appelez-nous	-
45	1105238		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
48	510716		Clamp (2)		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
52	483037		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Cover, Spring		Appelez-nous	-
55	1114190		Spring, Overload		Appelez-nous	-
57	482996		Capacitor		Appelez-nous	-
58	489142		Nut		Appelez-nous	-
59	876764		Valve, Access(3/16``)			Immediately	$ 95.92
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 137.25
59	489143		Washer		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
