02 - Cabinet


03 - Breaker And Partition


04 - Shelf


05 - Unit


06 - Liner


07 - Freezer Door


08 - Refrigerator Door , Not Illustrated

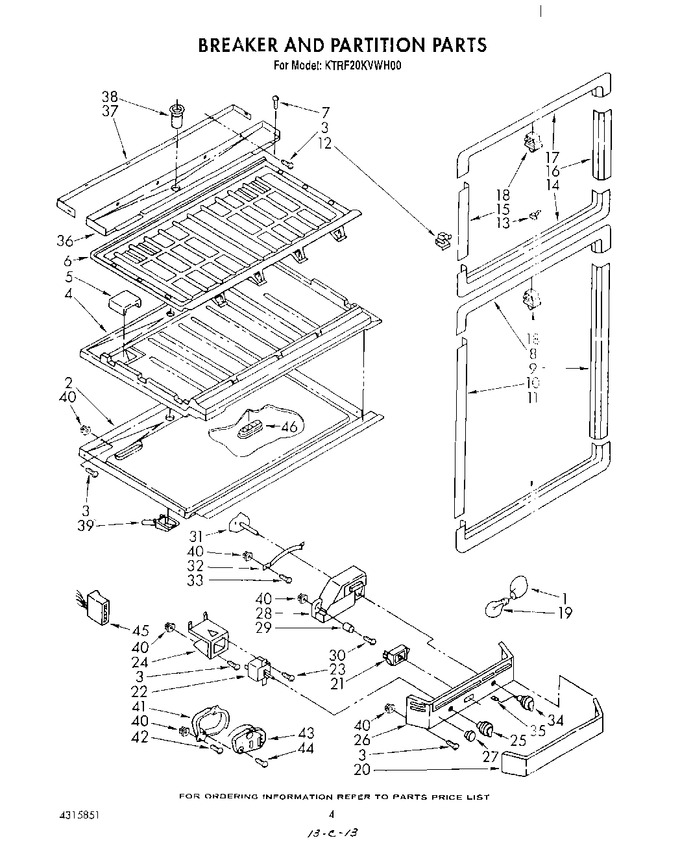

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4387478		Socket Assembly (2)   (Replaces: 851067)			Immediately	$ 115.67
2	981738		Bottom, Compartment Separator		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	991173		Insulation, Separator		Appelez-nous	-
5	981725		Gasket, Air Return		Appelez-nous	-
6	848423		Top, Compartment Separator		Appelez-nous	-
7	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
8	841643		Breaker, Mullion Bottom		Appelez-nous	-
9	841724		Breaker Trim (r.s.)		Appelez-nous	-
10	841721		Breaker Trim (l.s.)		Appelez-nous	-
11	839829		Breaker Trim, Bottom		Appelez-nous	-
12	836090		Breaker Trim, Retainer		Appelez-nous	-
13	534365		Breaker, Trim Clip				$ 14.83
14	841642		Breaker Trim, Top Mullion Top		Appelez-nous	-
15	841719		Breaker Trim (l.s.) Freezer		Appelez-nous	-
16	841722		Breaker Trim (r.s.) Freezer		Appelez-nous	-
17	986002		Breaker Trim, Top		Appelez-nous	-
18	W11384469		Rocker Arm Switch   (Replaces: 1118895)			Immediately	$ 39.09
19	W11679940		Light Bulb (2)   (Replaces: 946059)			Immediately	$ 11.30
20	983910		Light Lens		Appelez-nous	-
21	938049		Toggle, Switch		Appelez-nous	-
22	GC506		Thermostat & Barrier   (Replaces: 850955)				$ 50.44
23	WP965173		Screw, 8-15 X 3/8   (Replaces: 487584)			Immediately	$ 11.87
24	848446		Bracket, Thermostat		Appelez-nous	-
25	836482		Knob, Temperature		Appelez-nous	-
26	1107484		Panel, Control		Appelez-nous	-
27	534927		Hole Plug		Appelez-nous	-
28	836487		Air Diffuser		Appelez-nous	-
29	836667		Spacer		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4		Appelez-nous	-
31	984658		Damper, Air				$ 8.39
32	836493		Retainer, Damper		Appelez-nous	-
33	488624		Screw, 8 X 3/8		Appelez-nous	-
34	837445		Knob, Control		Appelez-nous	-
35	837444		Knob, Retainer		Appelez-nous	-
36	841686		Drain Pan		Appelez-nous	-
37	843291		Gasket, Drain Pan		Appelez-nous	-
38	841770		Fitting, Drain Pan		Appelez-nous	-
39	841708		Cup, Drain		Appelez-nous	-
40	842339		Grommet		Appelez-nous	-
41	983079		Container Timer		Appelez-nous	-
42	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
43	943428		Defrost Timer		Appelez-nous	-
44	488678		Screw, 8 X 1-3/8		Appelez-nous	-
45	481782		Defrost Wiring Harness		Appelez-nous	-
46	946683		Air Return, Grommet		Appelez-nous	-
