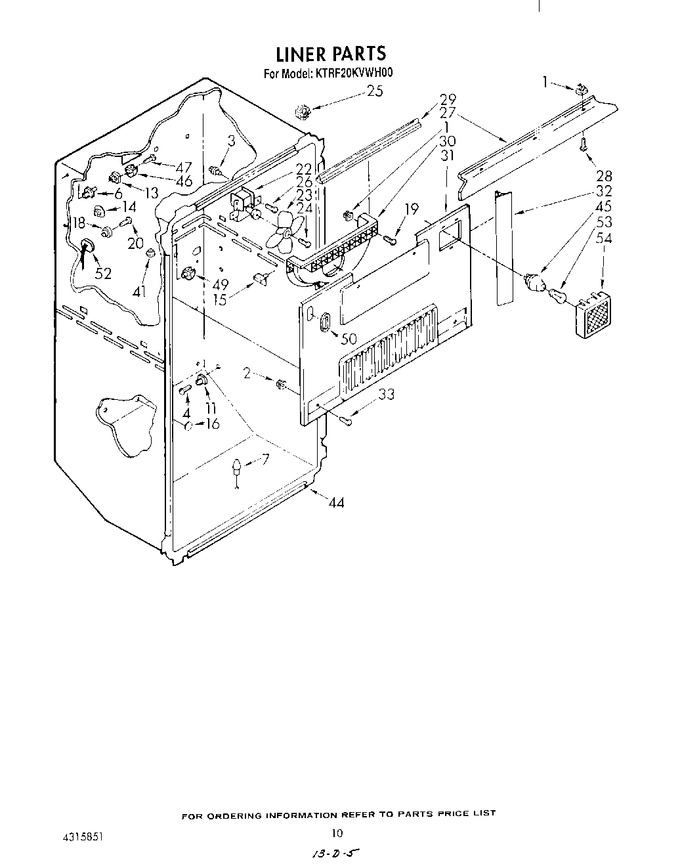

06 - Liner
07 - Freezer Door
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 848445 | Grommet |
|
- | |||||
| 3 | 845722 | Screw, Grommet |
|
- | |||||
| 4 | 487547 | Screw, 8-15 X 1 |
|
- | |||||
| 6 | 526383 | Stud |
|
- | |||||
| 7 | 836409 | Grommet, Crisper Cover |
|
- | |||||
| 11 | 1117317 | Shelf Stud (4) |
|
- | |||||
| 13 | 538449 | Screw Grommet |
|
- | |||||
| 14 | 659598 | Hole Plug (2) |
|
- | |||||
| 15 | 836374 | Retainer, Stud (4) |
|
- | |||||
| 16 | 519890 | Hole, Plug |
|
- | |||||
| 17 | 983604 | Screw, Anchor (3) |
|
- | |||||
| 18 | 850738 | Cap, Receptacle |
|
- | |||||
| 19 | WP681414 | Screw (repair) (Replaces: 489254) |
|
Immediately | $ 8.47 | ||||
| 19 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 20 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 8.40 | ||||
| 22 | 482731 | Fan, Motor (Replaces: 946653) |
|
Immediately | $ 79.05 | ||||
| 23 | WP1100938 | Fan, Blade (Replaces: 1100938) |
|
$ 92.26 | |||||
| 24 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 244.80 | |||||
| 25 | 531933 | Grommet |
|
$ 5.70 | |||||
| 26 | WP488488 | Screw, 8 X 15/16 (Replaces: 488488) |
|
$ 8.52 | |||||
| 27 | 982582 | Baffle, Liner Top |
|
- | |||||
| 28 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 29 | 935068 | Gasket, Sealing |
|
- | |||||
| 30 | 935067 | Scroll, Fan |
|
- | |||||
| 31 | 934066 | Cover, Evaporator |
|
- | |||||
| 32 | 981750 | Gasket, Evaporator Cover |
|
- | |||||
| 33 | WP488729 | Screw (Replaces: 489225) |
|
Immediately | $ 8.28 | ||||
| 41 | 533881 | Grommet |
|
- | |||||
| 44 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 45 | 850654 | Socket |
|
- | |||||
| 46 | 836492 | Shelf Stud (l.s.) |
|
- | |||||
| 47 | WP488729 | Screw (Replaces: 487109) |
|
Immediately | $ 8.28 | ||||
| 49 | 523263 | Shelf Stud Saddle (r.s.) |
|
- | |||||
| 50 | 659776 | Hole Plug, Evaporator Cover |
|
- | |||||
| 52 | 481658 | Icemaker Harness |
|
- | |||||
| 53 | W11679940 | Light Bulb (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 54 | 981365 | Light, Lens Freezer |
|
- |
