Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10233529 Service & Wiring Sheet Appelez-nous -
1 W10199182 Energy Guide Appelez-nous -
1 W10199183 Use & Care Guide Appelez-nous -
2 W10199222 Front Roller Asm (left Side) Special Order $ 36.32

2 W10199223 Front Roller Asm (right Side) Special Order $ 43.06

3 2223263 Strap, Roller Appelez-nous -
4 W10173132 Roller, Rear (2) Special Order $ 31.84

5 W11545866 Clip, Retainer (4)   (Replaces: 2223388) Special Order $ 11.88

6 WP2155013 Clip, Grille   (Replaces: 2155013) In-Stock Immediately $ 8.11

7 W10151272 Screw Special Order $ 11.67

8 2223545 Shim Special Order $ 84.03

9 2307008AP Hinge Top, Rc (apollo Grey) Special Order $ 167.60

9 2307008AP Hinge Top, Rc (white)   (Replaces: 2307008W) Special Order $ 167.60

10 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

11 W10142289 Screw Special Order $ 9.61

12 2307179 Hinge Assembly, Bottom-fc Special Order $ 50.88

13 2223893AP Filler, Wrapper (apollo Grey) Appelez-nous -
13 2223893W Filler, Wrapper (white) Appelez-nous -
14 W10173215 Grille (midnight Grey) Appelez-nous -
14 W10173213 Grille (white) Appelez-nous -
15 WP489478 Screw   (Replaces: W10001260) Special Order $ 8.18

16 2307007AP Hinge, Top Fc (apollo Grey) Special Order $ 165.93

16 2307007AP Hinge, Top Fc (white)   (Replaces: 2307007W) Special Order $ 165.93

18 W11566763 Drain Fitting   (Replaces: 2304888) In-Stock Immediately $ 53.45

19 2254566 Tube, Extension Special Order $ 53.99

20 2223409 Cover, Unit Special Order $ 77.44

21 2223387 Pin, Roller (4) Appelez-nous -
23 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

24 2307152 Hinge Assembly, Bottom-fc Special Order $ 36.02

28 2307051 Door Closer, Fc Special Order $ 73.51

31 WP489483 Screw   (Replaces: W10142234) Special Order $ 11.41

32 2307049 Door Closer (rc) Special Order $ 5.84

33 WP693995 Screw   (Replaces: W10142292) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

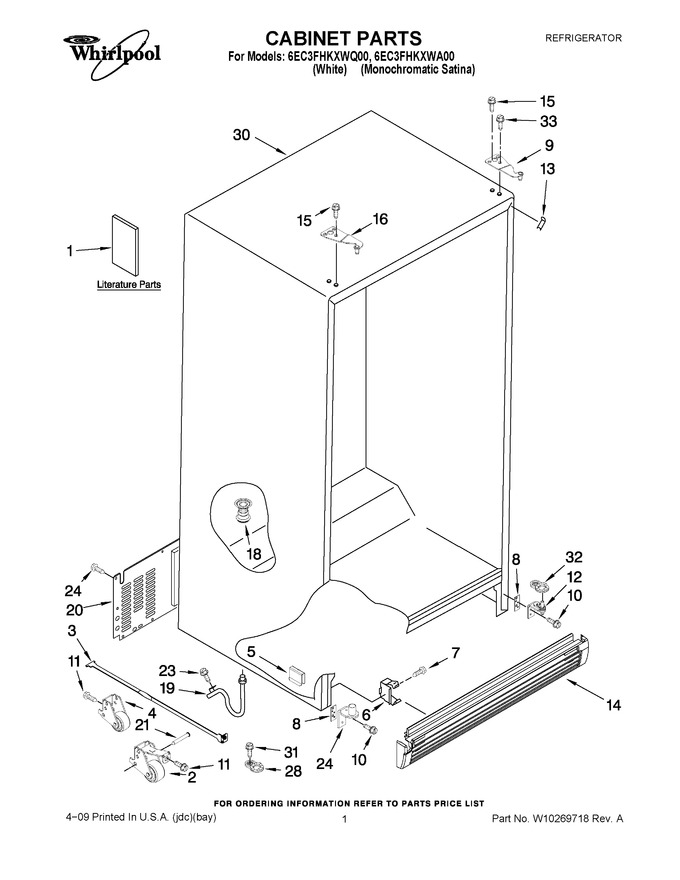

Diagram for 6EC3FHKXWQ00
