SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Optional Parts (not Included)

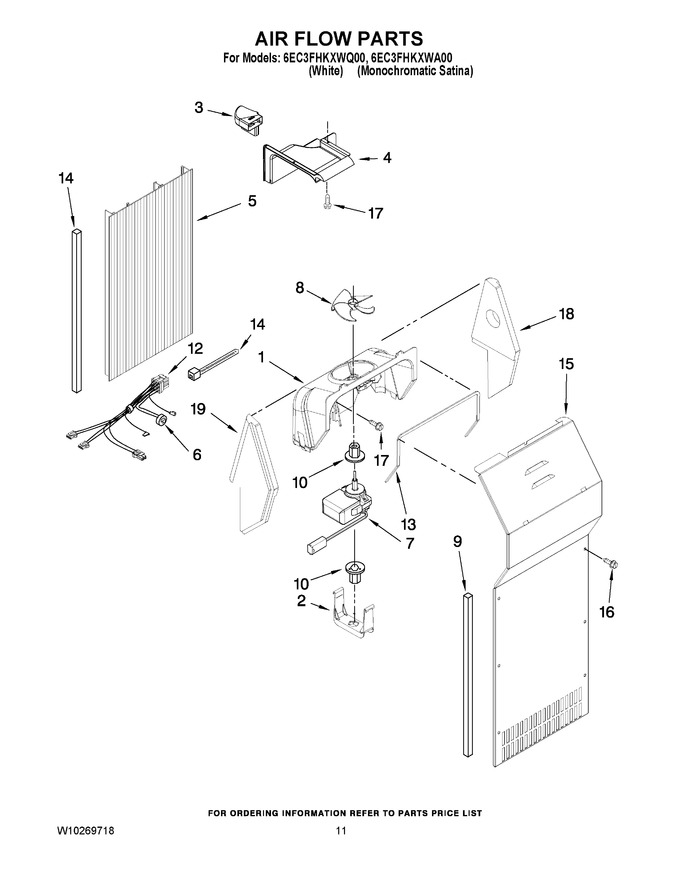

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 117.57
2	2155590		Retainer Fan Motor				$ 5.83
3	2223298		Air Scoop		Appelez-nous	-
4	2223303		Air Duct, Upper				$ 102.31
5	2223771		Air Duct Freezer		Appelez-nous	-
6	W10129958		Bi-metal, Defrost		Appelez-nous	-
7	WP2321275		Fan Motor   (Replaces: 2321275)				$ 318.82
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket   (Replaces: 2304241)			Immediately	$ 86.94
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 8.16
12	W10242395		Harness, Fan Evaporator (includes No.6)   (Replaces: W10129781)		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 8.18
14	4388500		Gasket   (Replaces: 2203876)				$ 94.91
15	2223413		Cover, Evaporator (includes No.9)		Appelez-nous	-
16	WP489464		Screw (6)   (Replaces: W10001250)			Immediately	$ 8.38
17	WP489478		Screw   (Replaces: W10001260)				$ 8.18
18	2223395		Support, R.s		Appelez-nous	-
19	4388358		Support, L.s   (Replaces: 2203596)				$ 32.72

    View Diagram in Separate Window       Print Part List
