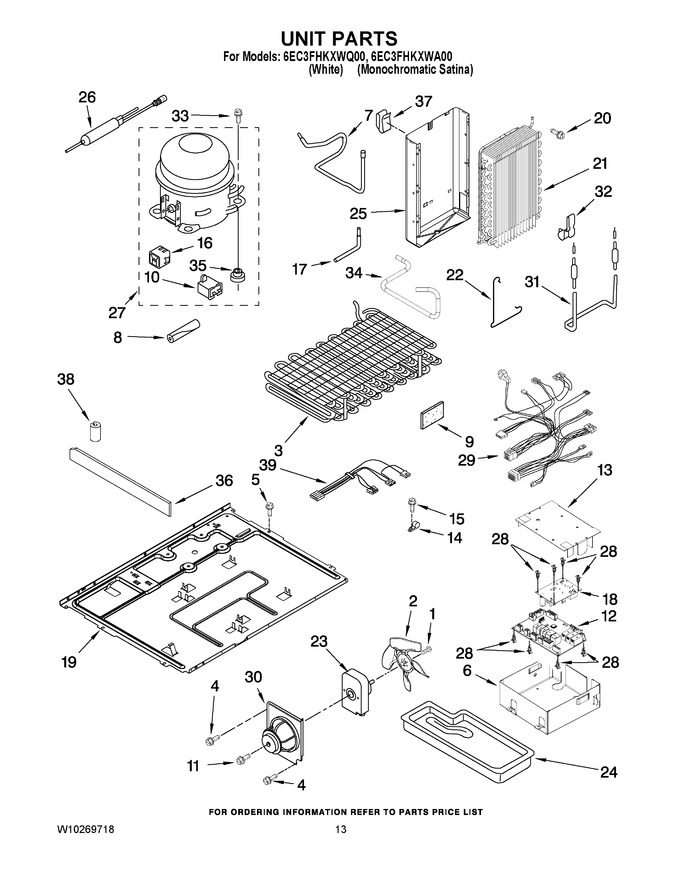

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
2	WPW10139483		Fan, Blade   (Replaces: W10139483)				$ 99.82
3	W10131059		Condenser Assembly		Appelez-nous	-
4	3400524		Screw   (Replaces: W10142287)				$ 13.28
5	WP3400906		Screw (6)   (Replaces: W10141632)				$ 9.05
6	W10199261		Housing, Control Board		Appelez-nous	-
7	W10528579		Tube Suction   (Replaces: 2223351)				$ 275.31
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	W11553819		Insulatiion, Sound   (Replaces: 2169104)			Immediately	$ 14.77
10	2321245		Capacitor		Appelez-nous	-
11	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
12	WPW10158418		Elek Ctrl, Python   (Replaces: W10158418)				$ 310.56
13	W10199262		Cover, Ctrl Board		Appelez-nous	-
14	WP1115374		Clamp, Cable   (Replaces: 1115374)				$ 8.14
15	WP489478		Screw   (Replaces: W10001260)				$ 8.18
16	2312003		Combo-start Device		Appelez-nous	-
17	2325479		Process Tube		Appelez-nous	-
18	W10143228		Electronic Control		Appelez-nous	-
19	2306932		Baseplate				$ 158.02
20	WPW10171469		Screw   (Replaces: W10171469)			Immediately	$ 11.61
21	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
22	2161324		Clamp		Appelez-nous	-
23	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 325.47
24	2223398		Tray, Evaporator		Appelez-nous	-
25	2224022		Heat Shield		Appelez-nous	-
26	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
27	WP8201733		Compressor (includes Item 16 & 35)   (Replaces: W10120454)				$ 581.19
28	2223800		Spacer (9)				$ 17.50
29	W10193356		Harness, Main Control		Appelez-nous	-
30	2224024		Fan, Motor Bracket				$ 56.36
31	W10199151		Heater, Defrost		Appelez-nous	-
32	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
33	876811		Screw (4)   (Replaces: 489373)				$ 7.79
34	W10181542		Tube, Discharge		Appelez-nous	-
35	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
36	2223394		Extension, Air Baffle		Appelez-nous	-
37	2155547		Clip, Heat Shield		Appelez-nous	-
38	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 8.09
39	W10193358		Unit Harness		Appelez-nous	-
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
