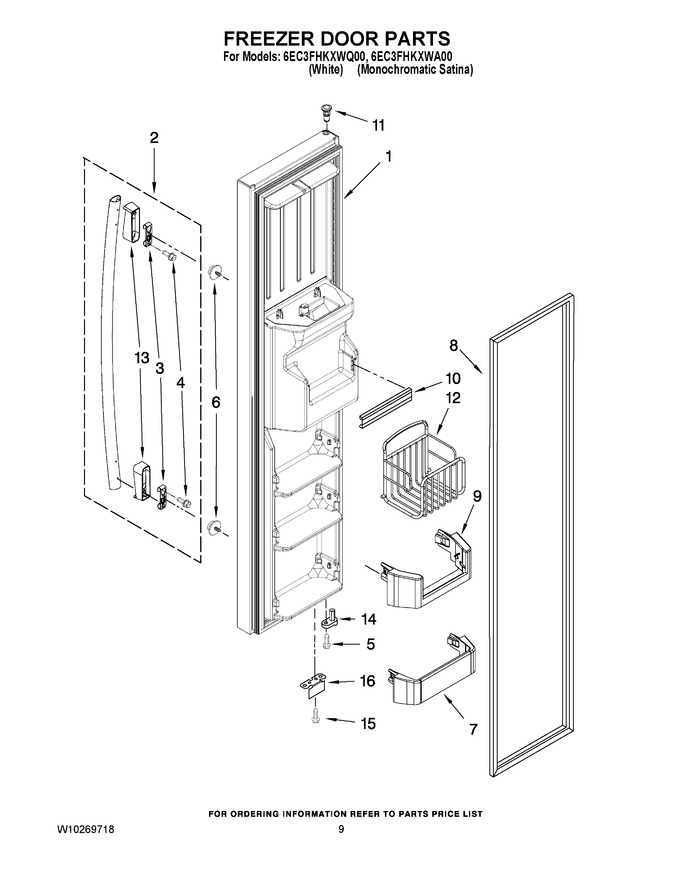

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10199201LG		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10199201W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10210942A		Handle, Assy (white)   (Replaces: W10127803)				$ 129.53
2	W10273556		Handle, Assy (stainless)   (Replaces: W10152865)				$ 294.85
3	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 36.55
4	W10267047		Screw, Handle   (Replaces: W10201588)				$ 13.47
5	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
6	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
7	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 63.70
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2223334		Door Gasket, Magnetic (trivet, Tilt-out (2))				$ 25.46
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
12	W10221053		Basket, Tilt-out (2)		Appelez-nous	-
13	W10152864		Endcap, Handle (stainless)		Appelez-nous	-
13	W10127813		Endcap, Handle (white)				$ 82.43
14	2307050		Door Closer, Upper Cam				$ 39.47
15	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
16	2306940		Bracket, Door Stop (chrome)				$ 101.93
