SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

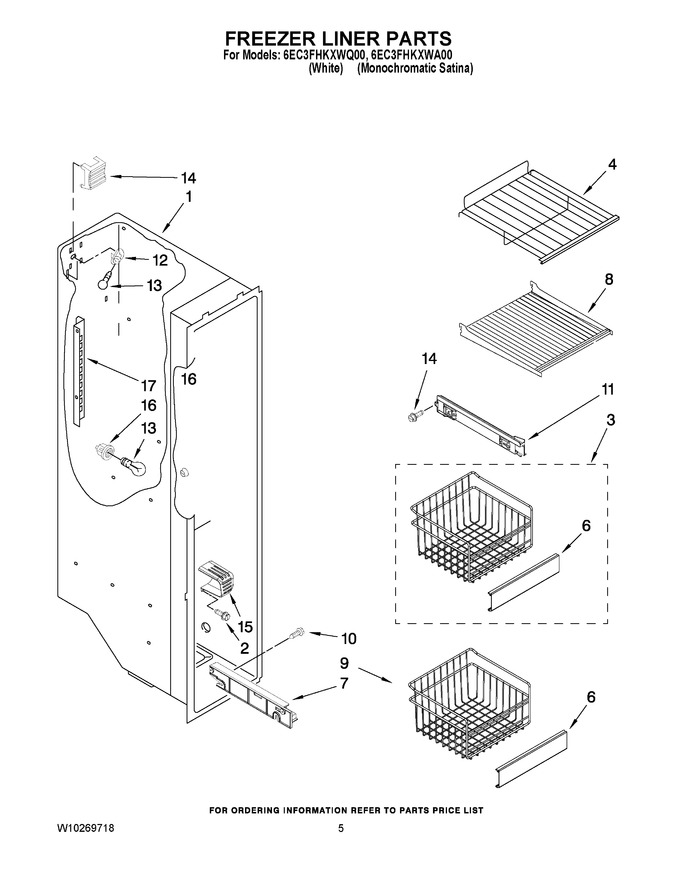

04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
3	2223980		Basket, Deep (2)		Appelez-nous	-
4	2223500		Shelf Assembly, Cantilever (2)		Appelez-nous	-
6	2223782		Front-basket (3)		Appelez-nous	-
7	2223787		Shelf Track (right Side)				$ 40.35
7	2223788		Shelf Track (left Side)				$ 40.68
8	2254615		Shelf, Fixed		Appelez-nous	-
9	2223981		Basket, Lower				$ 121.28
10	WP489427		Screw   (Replaces: W10146358)				$ 7.84
11	2224138		Glide Assembly, Basket (2) (left Side)		Appelez-nous	-
11	2224137		Glide Assembly, Basket (2) (right Side)		Appelez-nous	-
12	W11447232		Light Socket   (Replaces: W10134764)			Immediately	$ 13.87
13	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
14	2198589		Light Shield		Appelez-nous	-
15	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
16	WPW10119935		Socket, Light   (Replaces: W10119935)				$ 106.16
17	2198610		Ladder (right Side)				$ 63.20
17	2198609		Ladder (left Side)				$ 42.40

    View Diagram in Separate Window       Print Part List
