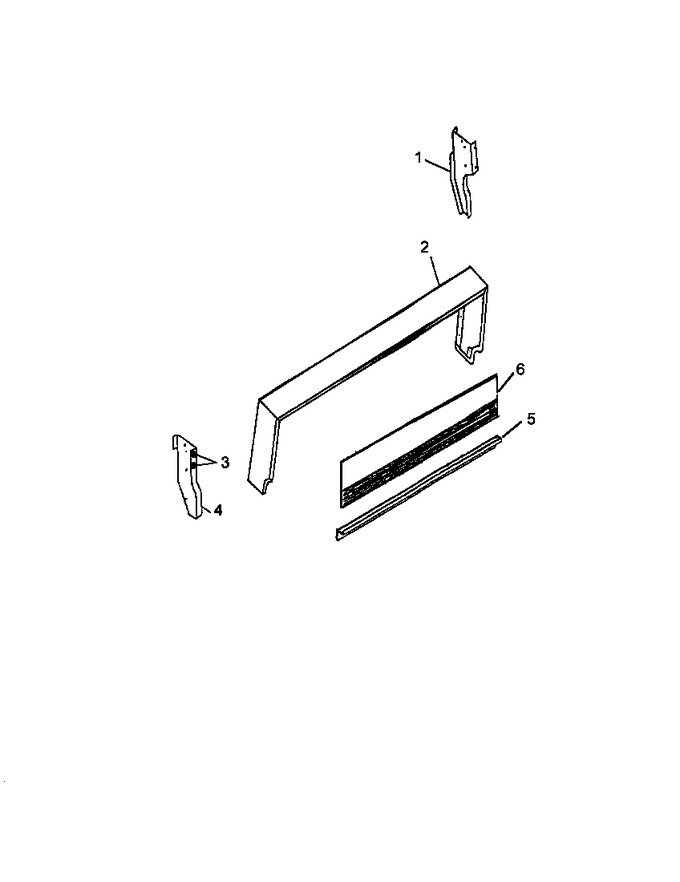

01 - Backguard Assy
02 - Broiler Door Assy
03 - Cabinet Assy
04 - Oven Components
05 - Oven Door
06 - Top Burner Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0088066 | Support, Backguard Rh |
|
- | |||||
| 2 | 0057322 | Backguard Frame |
|
- | |||||
| 3 | Y02068100 | Bumper-rubber 1/4`` |
|
- | |||||
| 4 | 0088065 | Support, Backguard Lh |
|
- | |||||
| 5 | Y02331024B | Base-bkgd, 30`` W/holes |
|
- | |||||
| 6 | 0055002 | Glass, Backguard |
|
- | |||||
| NI | Y01001302 | Screw, 10 X 1/2``(black) |
|
- |
