SELECT A DIAGRAM

01 - Backguard Assy


02 - Broiler Door Assy


03 - Cabinet Assy


04 - Oven Components


05 - Oven Door


06 - Top Burner Assy

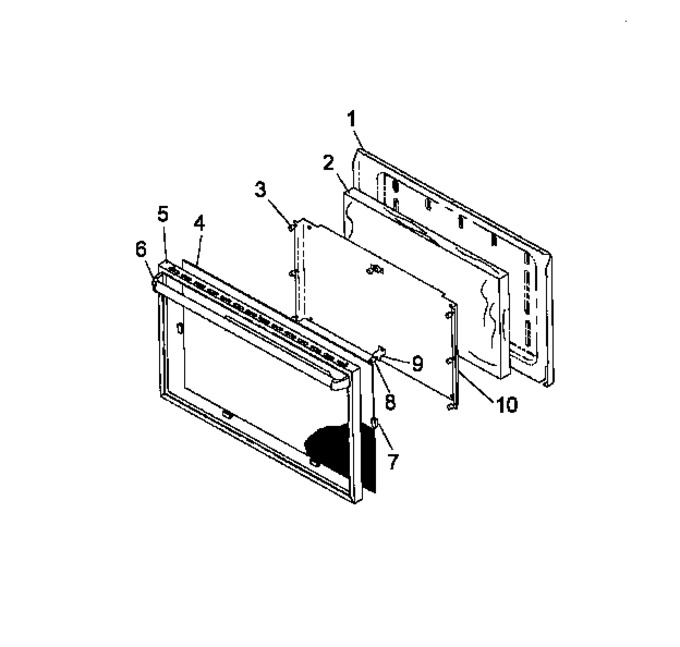

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	06543400E		Liner, Door		Appelez-nous	-
2	Y0095197		Insulation,wrapper		Appelez-nous	-
3	Y02068100		Bumper-rubber 1/4``		Appelez-nous	-
4	Y0311856		Glass,oven Door, Solid		Appelez-nous	-
5	0311827		Frame, Door Glass		Appelez-nous	-
6	Y0311764		Handle, Door		Appelez-nous	-
7	Y0312836		Bumper ``l`` Shaped		Appelez-nous	-
8	Y02068200		Bumper-rubber 1/4``		Appelez-nous	-
9	Y0311752		Bracket, Bumper Mount {j}		Appelez-nous	-
10	06511801		Baffle, Oven Door		Appelez-nous	-
NI	Y0310804		Screw No.10 X 1/2``		Appelez-nous	-
NI	Y0310409		Screw Cad Plate No.6 X 3/8``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
