01 - Backguard Assy


02 - Broiler Door Assy


03 - Cabinet Assy


04 - Oven Components


05 - Oven Door


06 - Top Burner Assy

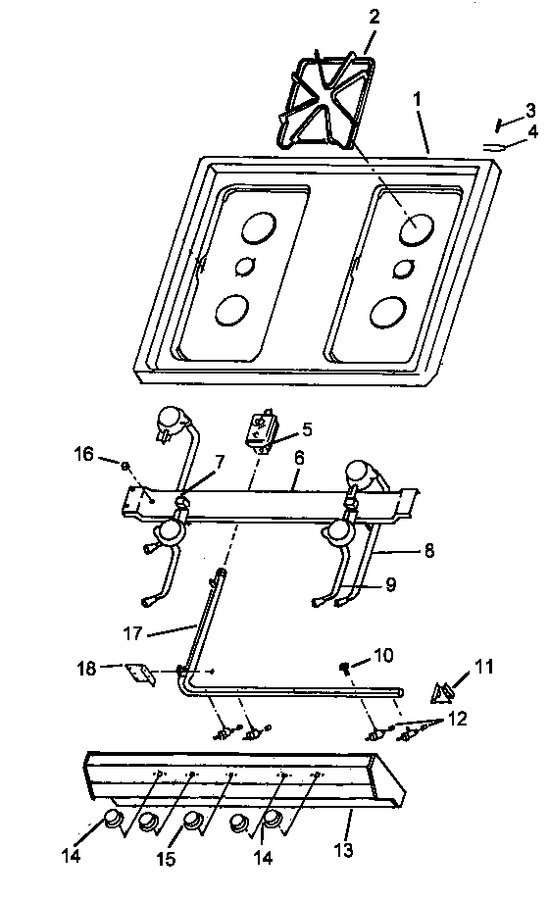

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310082W		Cooktop, White		Appelez-nous	-
2	314651B		Grate		Appelez-nous	-
3	Y0310036		Screw, Stud		Appelez-nous	-
4	Y0310032		Nut, Speed, Flat		Appelez-nous	-
5	Y0088783		Pressure Regulator		Appelez-nous	-
6	Y06451810		Support, Top Burner 30``		Appelez-nous	-
7	0057313		Pilot Tip (j)		Appelez-nous	-
8	Y07699200		Burner - Top Rear (cal)				$ 91.96
9	Y07699100		Burner - Top Front (cal)				$ 79.99
10	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
11	0311810		Bracket, Manifold Support		Appelez-nous	-
12	Y07596400		Valve, Gas		Appelez-nous	-
13	Y0311849		Panel, Manifold		Appelez-nous	-
14	Y07589200		Knob Top Burner				$ 18.03
15	Y0055029		Knob, Thermostat		Appelez-nous	-
16	0088650		Square Nut {j}		Appelez-nous	-
17	Y07647212		Pipe, Manifold (30``)		Appelez-nous	-
18	Y0311811		Bracket, Manifold Support		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
