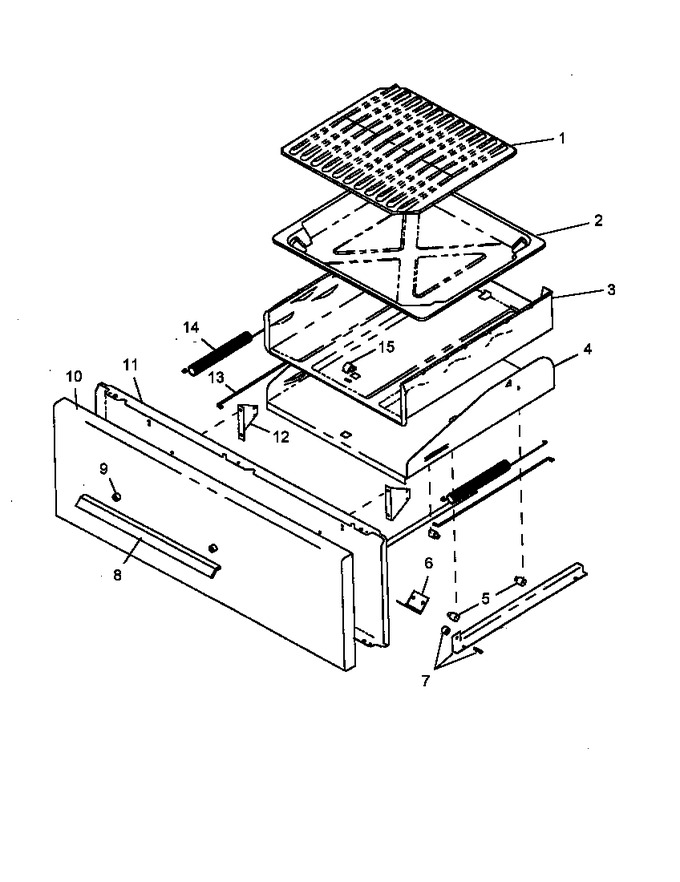

01 - Backguard Assy


02 - Broiler Door Assy


03 - Cabinet Assy


04 - Oven Components


05 - Oven Door


06 - Top Burner Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4396923		Broiler, Grid   (Replaces: 87723CG)			Immediately	$ 60.71
2	87722CG		Pan, Broiler		Appelez-nous	-
3	86908CG		Drawer, Broiler		Appelez-nous	-
4	06522100		Support,body Carriage		Appelez-nous	-
5	Y07687901		Glide, Drawer (blk)		Appelez-nous	-
6	Y0313773		Hinge, Black		Appelez-nous	-
7	Y0313760		Track, Lower L.h.		Appelez-nous	-
7	Y0313761		Track, Lower R.h.		Appelez-nous	-
8	Y0088812		Oven Door Handle, 18``		Appelez-nous	-
9	Y0310818		Handle Spacer, Plastic (j)		Appelez-nous	-
10	311882W		Panel, Broiler Door (wht)		Appelez-nous	-
11	Y06514700E		Liner, Broil Door,30``		Appelez-nous	-
12	Y06520700		Brkt, Spring & Rod		Appelez-nous	-
13	Y0313770		Rod, Push-broiler		Appelez-nous	-
14	Y07691101		Spring, Broiler Door		Appelez-nous	-
15	Y0088664		Spring Clip		Appelez-nous	-
NI	Y0310804		Screw No.10 X 1/2``		Appelez-nous	-
NI	0310240		Screw		Appelez-nous	-
NI	Y0311884		Screw, Door Handle		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
