01 - Backguard Assy

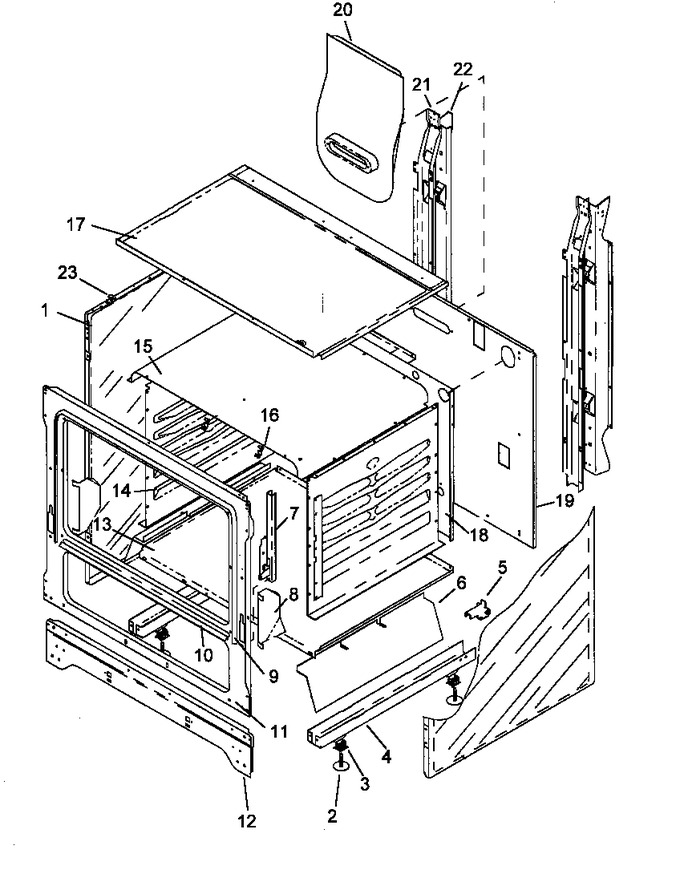

02 - Broiler Door Assy


03 - Cabinet Assy


04 - Oven Components


05 - Oven Door


06 - Top Burner Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313762W		Panel, Texture Body		Appelez-nous	-
2	W11117769		Leveler, Leg   (Replaces: Y01084002)			Immediately	$ 19.37
3	0310033		Clip, Speed (doz) {j}		Appelez-nous	-
4	06555001		Rail, Base		Appelez-nous	-
6	0310816		Radiation Shield, Broiler		Appelez-nous	-
7	Y0311852		Hinge,oven Door		Appelez-nous	-
8	0310064		Shield, Insulation (j)		Appelez-nous	-
9	Y0311770		Seal, Oven Door		Appelez-nous	-
10	Y0056091		Seal, Oven-top & Bottom 30``		Appelez-nous	-
11	Y0311880		Front Frame		Appelez-nous	-
12	Y06451602		Panel, Toe 30`` (black)		Appelez-nous	-
13	Y06467101		Baffle, Base (30``gas)		Appelez-nous	-
14	0311807		Liner,oven Side		Appelez-nous	-
15	Y06470802E		Topliner, Oven 30``gas		Appelez-nous	-
16	01052001		Clip, Capillary		Appelez-nous	-
17	06559501		Box Burner		Appelez-nous	-
18	Y03382001E		Backliner, Oven (enamel)		Appelez-nous	-
19	0088656		Main Back {j}		Appelez-nous	-
20	0088718		Flue Box		Appelez-nous	-
21	0052742		Vertical Sup. (j)		Appelez-nous	-
22	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
23	Y0087002		Sub 63661, Bumper, Ov. Dr.		Appelez-nous	-
NI	Y01001301		Screw, 10 X 5/8 Decr Hd		Appelez-nous	-
NI	0310054		Support, Side Liner {j}		Appelez-nous	-
NI	0310038		Insulation Back (j)		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
NI	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
