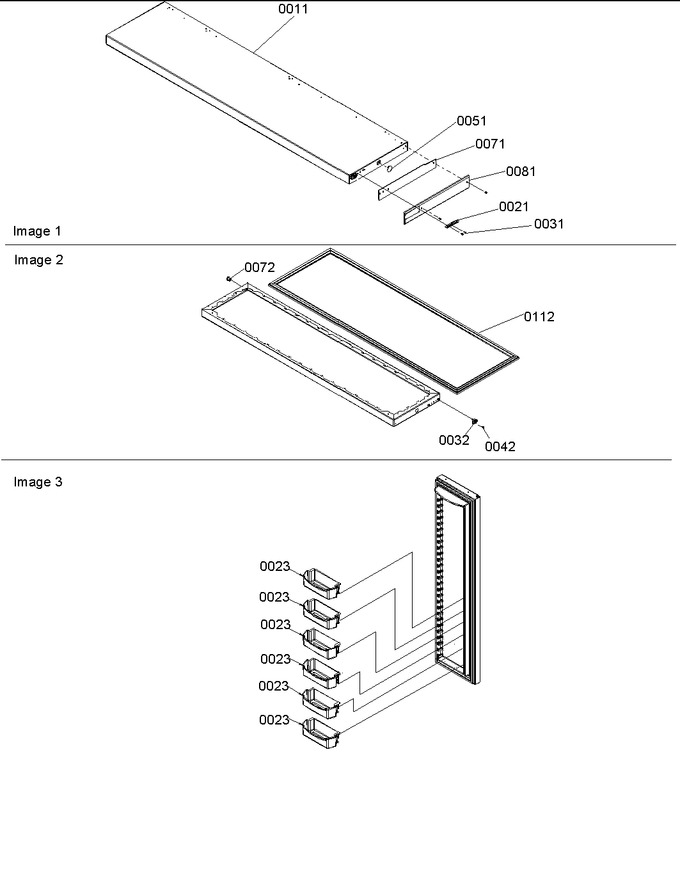

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12310101EQ		Assy, Frz Door (black)		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
23	12311906		Bucket, Frz Door		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
51	A3080001		Plug, Button (blk)		Appelez-nous	-
71	10494607		Support Trim (ref Btm)		Appelez-nous	-
72	10961002		Bushing, Door (blk)		Appelez-nous	-
81	10602505		Trim, Frz Door (bottom)		Appelez-nous	-
112	R9800049		Assy,fz Dr Gasket(black)		Appelez-nous	-
NI	12310203		Retainer, Frz Bucket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
