SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Control Assy


04 - Deli, Shelves And Crisper Assy


05 - Drain Systems And Evaporator Assy


06 - Freezer Door


07 - Freezer Shelves And Lights


08 - Ice Maker Parts And Add On Ice Maker


09 - Lights, Hinges And Shelving Assy


10 - Machine Compartment And H.v. Box Assy.


11 - Refrigerator Door, Trim And Handles

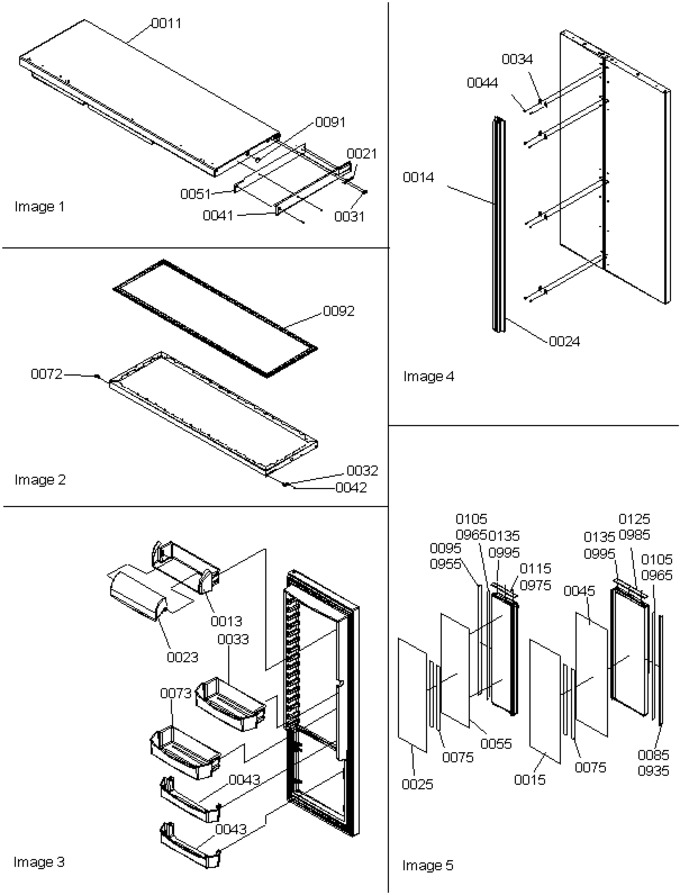

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309701EQ		Assy, Ref Door (black)		Appelez-nous	-
13	12308603		Frame, Dairy				$ 26.46
14	12312217		Handle, Frz Dr (black)		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
24	12312216		Handle, E Ref Door		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
33	12309509		Bucket, Ref Door		Appelez-nous	-
34	12315101		Clip		Appelez-nous	-
41	10602605		Trim, Refrig Door (bottom)		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
43	12311206		Shelf, Ref Door				$ 30.51
44	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
51	10494606		Support Ref Trim (btm)		Appelez-nous	-
72	10961002		Bushing, Door (blk)		Appelez-nous	-
73	12309511		Bucket, Ref Door				$ 39.49
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800048		Assy,ref Dr Gasket(black)		Appelez-nous	-
935	10494507		Trim, Vertical (black)		Appelez-nous	-
955	10494508		Trim, Vertical (black)		Appelez-nous	-
965	R0195042		Double Backed Tape 6ft Roll		Appelez-nous	-
975	10494212		Trim-e Fz Dr Top		Appelez-nous	-
985	10494417		Trim-e Ref Dr Top		Appelez-nous	-
995	WP98008545		Screw, Sm (blk)   (Replaces: M0210443)				$ 18.60
NI	12310201		Retainer, Ref Bucket		Appelez-nous	-
