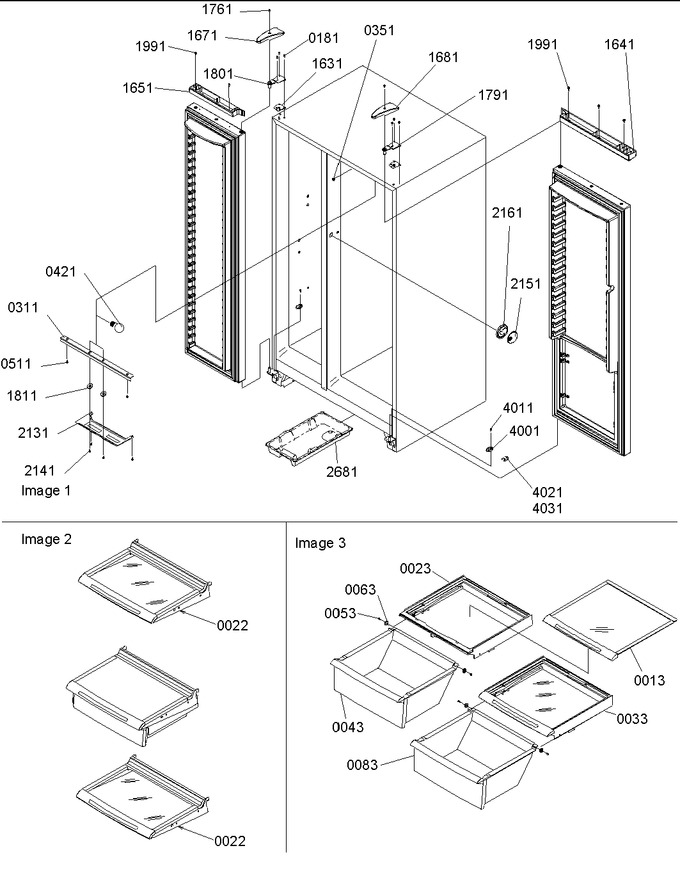

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 10783108 | Shelf-top Crisper |
|
- | |||||
| 22 | 10883322Q | Assy, Full Glide Shelf |
|
- | |||||
| 23 | 10882801Q | Assy, Crisper Frame |
|
- | |||||
| 33 | 10882809Q | Assy, Crisp Frame |
|
- | |||||
| 43 | 10783201 | Pan,crisper |
|
- | |||||
| 53 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 63 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 83 | 10783301 | Pan, Crisper |
|
- | |||||
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 311 | 10014716 | Shield, Light |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 1631 | 12428101 | Shim, Top Hinge |
|
- | |||||
| 1641 | 10979103 | Ext.- E. Ref Dr,black |
|
- | |||||
| 1651 | 10979203 | Ext, Fz Dr (blk) |
|
- | |||||
| 1671 | 10504213 | Cover, Hinge(lh) |
|
- | |||||
| 1681 | 10504214 | Cover, Hinge(rh) |
|
- | |||||
| 1761 | M0202325 | Screw |
|
- | |||||
| 1791 | 12426202 | Hinge, Top R (e-ct) |
|
- | |||||
| 1801 | 12426203 | Hinge, Top L (e-ct) |
|
- | |||||
| 1811 | M0270508 | Washer |
|
- | |||||
| 1991 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 2131 | 10493302 | Cover, Frz Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2151 | 10164813 | Grille, Control |
|
- | |||||
| 2161 | 10164702 | Control-air |
|
- | |||||
| 2681 | 10845602 | Pan, Drain |
|
- | |||||
| 4001 | R0181181 | Closure, Door (blk) (Replaces: 12431302) |
|
Immediately | $ 7.55 | ||||
| 4011 | WP8281227 | Screw, Tc (Replaces: M0220432) |
|
$ 10.96 | |||||
| 4021 | WP67005716 | Shim, Dr Closure (blk) (Replaces: 10361806) |
|
$ 7.83 | |||||
| 4031 | 10361804 | Shim, Dr Bushing |
|
- |
