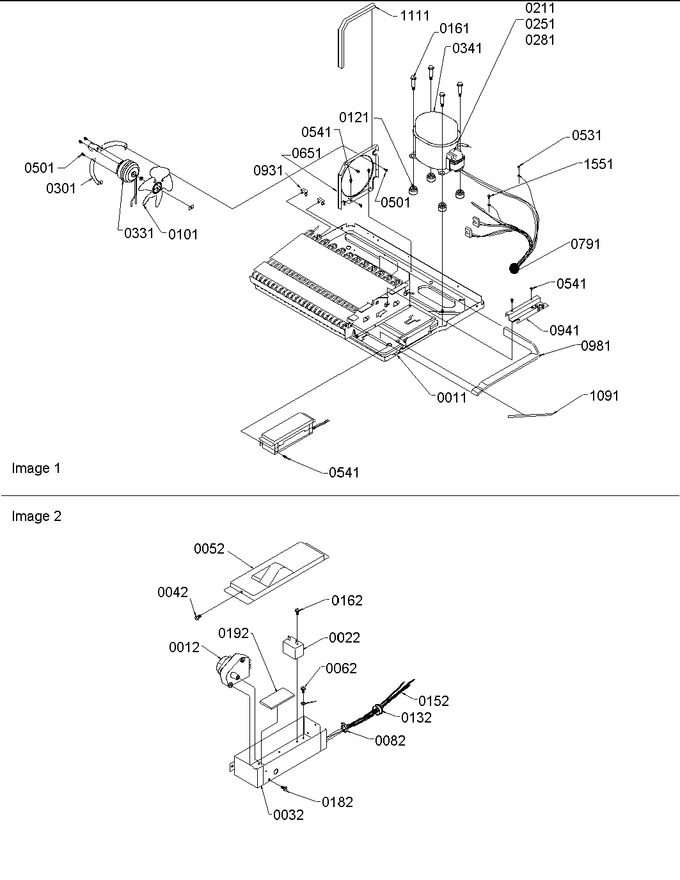

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10883406		Assy, Cond/pan E-ct		Appelez-nous	-
12	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530703)			Immediately	$ 51.24
22	WP65889-4		Capacitor   (Replaces: C8931608)			Immediately	$ 61.14
32	10277024		H V Box-e Ct		Appelez-nous	-
42	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
52	10276908		Top, H.v. Box (e-ct)		Appelez-nous	-
62	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
82	M0585702		Clamp, Wire		Appelez-nous	-
101	B5742604		Blade, Fan		Appelez-nous	-
121	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.55
132	A3293504		Bushing, Snap		Appelez-nous	-
152	12411101		Harness, Mach Comp		Appelez-nous	-
161	M0221523		Screw, Shldr		Appelez-nous	-
162	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
182	M0216705		Screw				$ 5.81
192	A3189364		Gasket, Foam		Appelez-nous	-
211	10377015		Overload		Appelez-nous	-
251	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
281	10757301		Cover, Terminal		Appelez-nous	-
301	C8982102		Brkt,cond. Mtr		Appelez-nous	-
331	833697		Motor, Fan   (Replaces: 10522102)			Immediately	$ 88.15
341	W10309990		Kit, Compressor (1380)   (Replaces: 12049710)			Immediately	$ 632.81
501	M0223816		Screw, Tr				$ 5.27
531	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
651	10845505		Cond. Fn Shrd		Appelez-nous	-
791	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
931	10874601		Clip-cond.		Appelez-nous	-
941	10845302		H.v. Box Shelf-e Ct		Appelez-nous	-
981	A3189367		Gasket-foam		Appelez-nous	-
1091	B5759645		Gasket, Sealing		Appelez-nous	-
1111	A3030359		Gasket		Appelez-nous	-
1551	WP489399		Screw   (Replaces: M0232903)				$ 7.30
