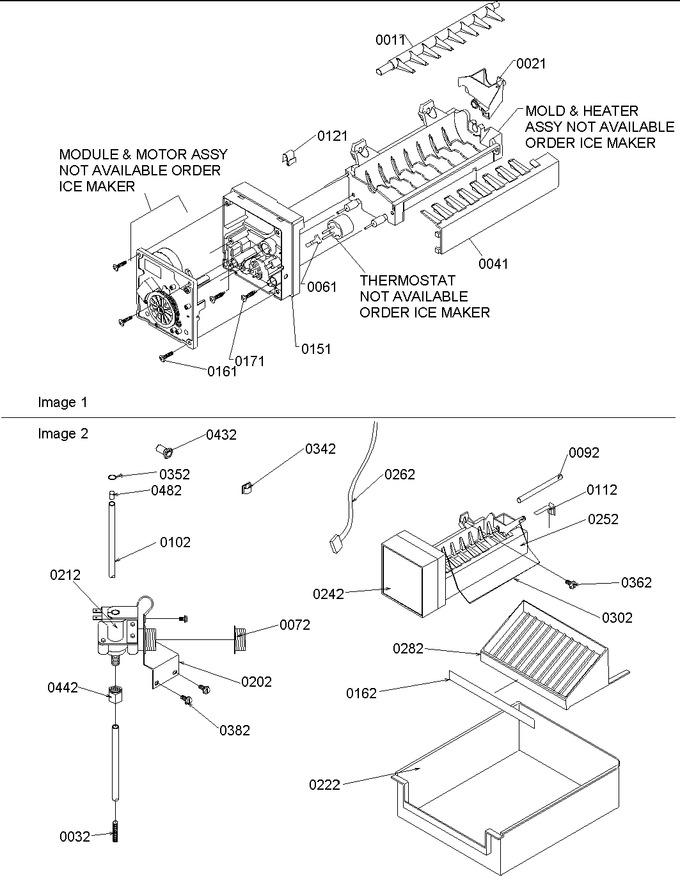

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
32	A1055101		Spring, Antikink		Appelez-nous	-
41	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
61	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
72	NC2098LF		Coupling   (Replaces: 10244903)				$ 24.74
92	A3127412		Ext. Fill Tube		Appelez-nous	-
102	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
112	B5720301		Clip		Appelez-nous	-
121	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
151	WP2195914		Support   (Replaces: R0183121)				$ 109.80
161	R0186041		Screw		Appelez-nous	-
162	C8986123		Insert, Juice Rack		Appelez-nous	-
171	R0186040		Screw		Appelez-nous	-
202	10496302		Brkt, Water Valve		Appelez-nous	-
212	4318047		Valve-water K   (Replaces: D7712603)			Immediately	$ 74.09
222	D7806212		Pan, Ice		Appelez-nous	-
242	D7820401		Cover Im		Appelez-nous	-
252	D7824706Q		Ice Maker   (Replaces: D7824705)			Immediately	$ 167.35
262	D7826301		Harness, Mod. Im		Appelez-nous	-
282	D7839703		Rack, Juice V		Appelez-nous	-
302	Y10901401		Arm, I.m. Shut-off		Appelez-nous	-
342	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
352	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
362	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
382	681390		Screw   (Replaces: M0251015)				$ 13.71
432	M0560005		Support		Appelez-nous	-
442	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
482	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
	NOTE:		Note: Not All Parts Warranted. D7824705 Ice Maker Does Not Include Cover, Harness, Shut-off Arm, And Bracket. Must Order Piece Parts With The Exception Of Mod		Appelez-nous	-
NI	10527037		Instr., Install		Appelez-nous	-
NI	M0211116		Screw, Sm		Appelez-nous	-
NI	M0108005		Clamp, Tube (.250)		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3036901		Label Warranty		Appelez-nous	-
NI	10549601		Label, Caution (ice Maker)		Appelez-nous	-
NI	10834701		Label, Im		Appelez-nous	-
