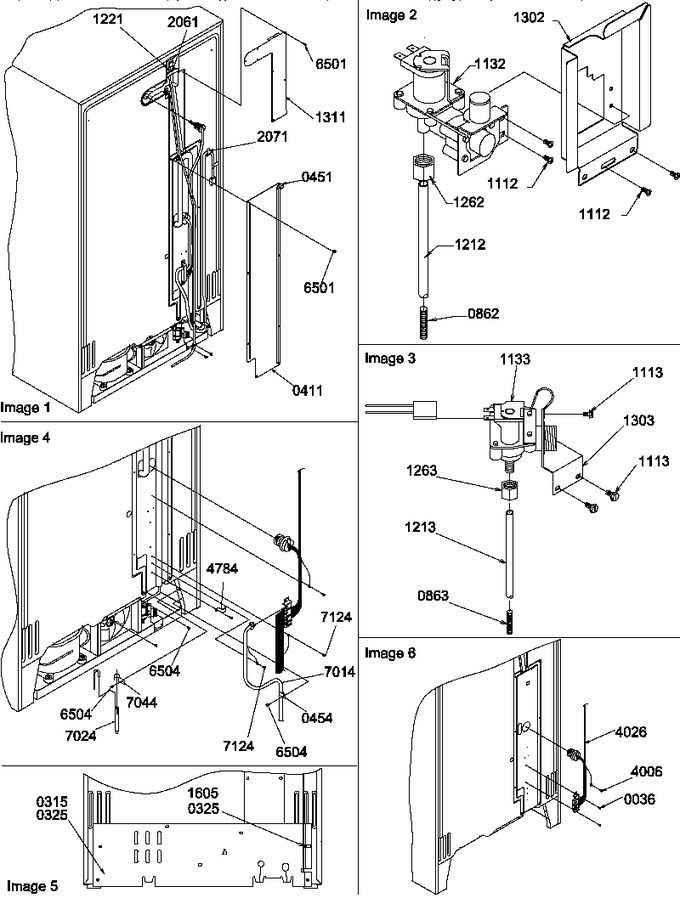

01 - Cabinet Back


02 - Cabinet Pats


03 - Fz Door


04 - Fz Shelves And Light


05 - Ice Maker/control Assemblies


06 - Machine Compartment


07 - Ref Door


08 - Ref/fz Door Trim And Panels


09 - Ref/fz Shelves, Lights, And Hinges


10 - Rollers And Evap Assemblies


11 - Shelves, Deli, And Crisper Assemblies


12 - Toe Grill And Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
315	D7788912		Ass`y, Mc Back		Appelez-nous	-
325	M0219704		Screw		Appelez-nous	-
411	10178405		Cover, O.c.back		Appelez-nous	-
451	M0103904		Clamp, Speed		Appelez-nous	-
454	M0103904		Clamp, Speed		Appelez-nous	-
863	A1055101		Spring, Antikink		Appelez-nous	-
1113	681390		Screw   (Replaces: M0251015)				$ 13.71
1133	4318047		Valve-water K   (Replaces: D7712603)			Immediately	$ 74.09
1213	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
1221	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
1263	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
1303	10496302		Brkt, Water Valve		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
1605	M0108001		Clamp, Tube		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
4006	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
4026	12178301		Harness, Cabinet		Appelez-nous	-
4784	B5794201		Clamp		Appelez-nous	-
6501	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
6504	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7014	10678503		Cord, Power		Appelez-nous	-
7024	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7044	10547001		Clip, Drier		Appelez-nous	-
7124	WP489399		Screw   (Replaces: M0239217)				$ 7.30
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
