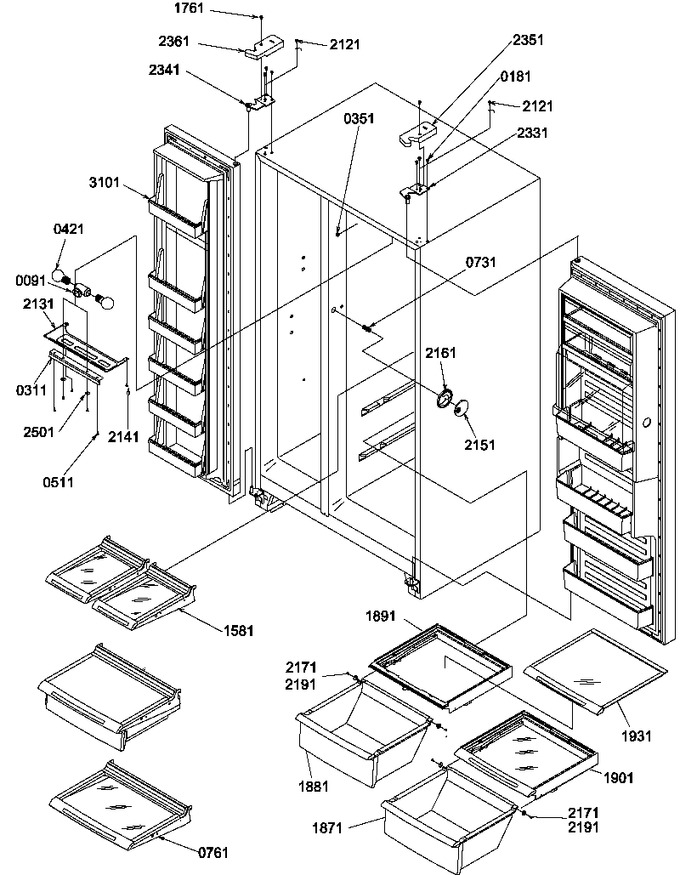

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
91	12156201		Socket, Dual Lamp		Appelez-nous	-
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
731	10426801		Clip, Air Tunnel		Appelez-nous	-
761	10883317		Assy Shelf		Appelez-nous	-
1581	10883316		Assy, Split Glide Shelf		Appelez-nous	-
1761	M0202325		Screw		Appelez-nous	-
1871	10783301		Pan, Crisper		Appelez-nous	-
1881	10783201		Pan,crisper		Appelez-nous	-
1891	10882801		Assy, Crisper Frame		Appelez-nous	-
1901	10882809		Assy, Crisp Frame		Appelez-nous	-
1931	10783108		Shelf-top Crisper		Appelez-nous	-
2121	W11214483		Screw, Mach   (Replaces: M0202321)			Immediately	$ 14.72
2131	10493202		Cover, Ref. Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164808		Grille, Control		Appelez-nous	-
2161	10164702		Control-air		Appelez-nous	-
2171	10481001		Roller, Pan				$ 10.99
2191	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
2331	12077314		Hinge, Top R (e-ct)		Appelez-nous	-
2341	12077315		Hinge, Top L (e-ct)		Appelez-nous	-
2351	10504215		Cover, Hinge		Appelez-nous	-
2361	10504216		Cover, Hinge		Appelez-nous	-
2501	M0270508		Washer		Appelez-nous	-
3101	10525513		Shelf, Frz Dr		Appelez-nous	-
