SELECT A DIAGRAM
New Model Search:

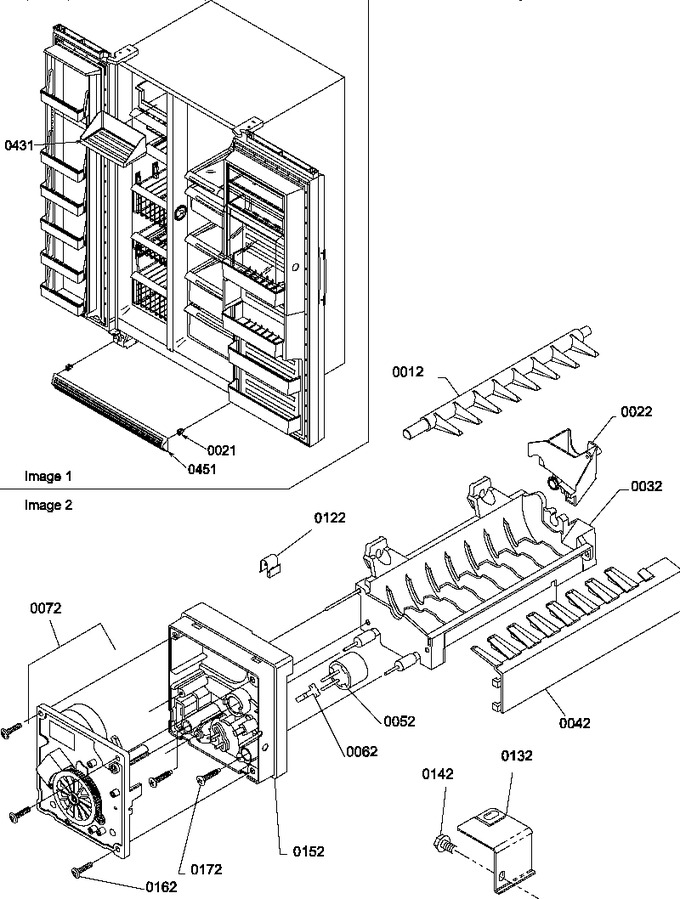

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 87.78 | |||||
| 21 | M0117303 | Clip, Grille |
|
$ 5.65 | |||||
| 22 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 53.75 | |||||
| 32 | D7824706Q | Assy, Mold & Heater (Replaces: R0156669) |
|
Immediately | $ 167.35 | ||||
| 42 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 90.35 | |||||
| 52 | WP627985 | N/a See Notes-thermostat (Replaces: R0161060) |
|
$ 114.64 | |||||
| 62 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.60 | |||||
| 72 | W10190935 | Module & Mtr Assy,120v/60hz (Replaces: R0167203) |
|
Immediately | $ 110.07 | ||||
| 122 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 11.10 | |||||
| 132 | B8391802 | Bracket, I/m |
|
- | |||||
| 142 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 152 | WP2195914 | Support (Replaces: R0183121) |
|
$ 109.80 | |||||
| 162 | R0186041 | Screw |
|
- | |||||
| 172 | R0186040 | Screw |
|
- | |||||
| 431 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 451 | 12321807 | Assy, Toe Grille (white) |
|
- | |||||
| NI | 10834701 | Label, Im |
|
- |
