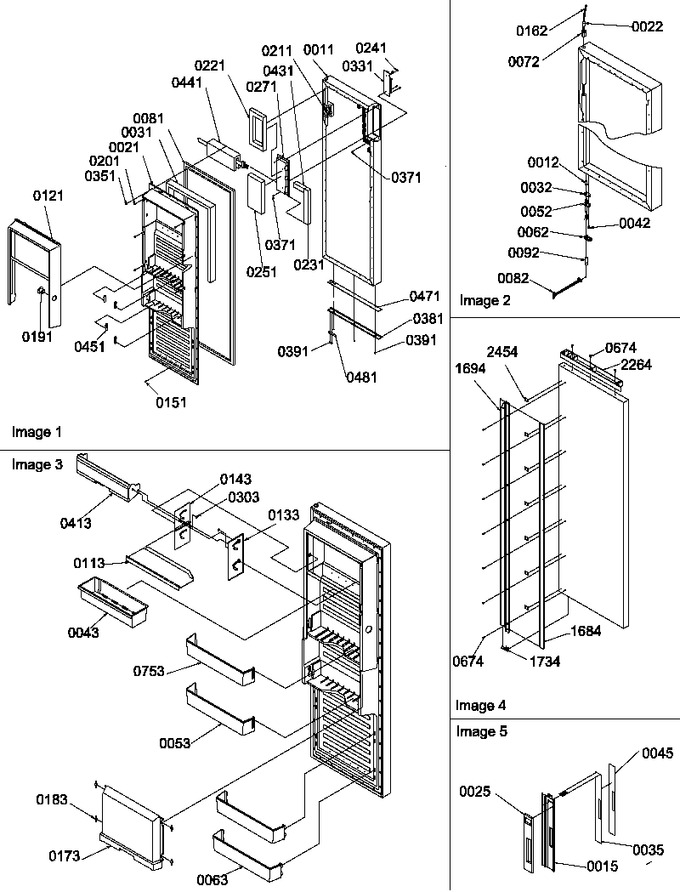

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10898206W		Assy Ref Dr Foam		Appelez-nous	-
12	B8390602		Grommet, Hinge Pin		Appelez-nous	-
15	12106405		Handle-w Ref Dr		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
22	B8381402		Grommet, Hinge Pin		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
32	10361803		Shim, Dr Bushing				$ 5.51
35	10519401		Assy, Keyboard		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	10883901		Bucket-beverage		Appelez-nous	-
45	10603112		Faceplate-w Elect		Appelez-nous	-
52	12113401		Closure, Door (wht)		Appelez-nous	-
53	10520410		Shelf, Chiller		Appelez-nous	-
62	12113301		Closure, Door (wht)		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	10359708		Gasket, Door (w Ref)		Appelez-nous	-
82	M0335412		Connector-12 Pin		Appelez-nous	-
92	10561601		Assy, Hinge Pin		Appelez-nous	-
113	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
151	M0226705		Screw, Shoulder		Appelez-nous	-
162	12211504		Harness, Ref Door		Appelez-nous	-
173	10519208		Door, Chiller		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629063		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629064		Insulation, Batt		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
331	10614402		Board, L.v. X		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0234114		Screw		Appelez-nous	-
381	10602618		Trim, Ref Dr Bot		Appelez-nous	-
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
413	12103001		Door-dairy		Appelez-nous	-
431	B5629065		Insulation, Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
471	10494603		Support Ref Trim (btm)		Appelez-nous	-
481	C8972405		Stop-w Door		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
753	10520412		Shelf, Chiller		Appelez-nous	-
1684	10945933		Insert-w Handle		Appelez-nous	-
1694	10887913		Assy, Ref Hndl (white)		Appelez-nous	-
1734	10871401		Cap-w Hndl Bot.		Appelez-nous	-
2264	10979101		Exten. W Ref Door		Appelez-nous	-
2454	10875801		Clip-handle		Appelez-nous	-
