SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Pats


03 - Fz Door


04 - Fz Shelves And Light


05 - Ice Maker/control Assemblies


06 - Machine Compartment


07 - Ref Door


08 - Ref/fz Door Trim And Panels


09 - Ref/fz Shelves, Lights, And Hinges


10 - Rollers And Evap Assemblies


11 - Shelves, Deli, And Crisper Assemblies


12 - Toe Grill And Ice Maker Parts

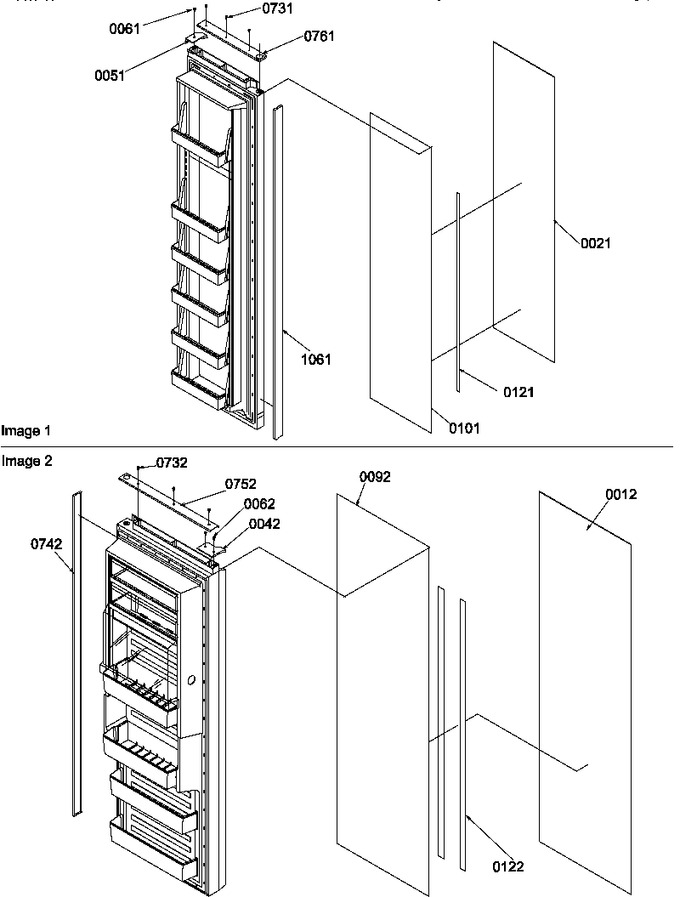

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10096957		Panel-white Yel		Appelez-nous	-
21	10096939		Panel-white		Appelez-nous	-
42	10871301		Cap-w Hndl Top		Appelez-nous	-
51	10871102		Cap-w Fz Hndl Top		Appelez-nous	-
61	M0213517		Screw K		Appelez-nous	-
62	M0213517		Screw K		Appelez-nous	-
92	10234617		Spacer		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
731	M0213815		Screw		Appelez-nous	-
732	M0213815		Screw		Appelez-nous	-
742	10494523		Trim, Vert		Appelez-nous	-
752	10494414		Trim, Ref Dr Top		Appelez-nous	-
761	10494204		Trim-w Fz Dr Top		Appelez-nous	-
1061	10494524		Trim, Vert		Appelez-nous	-
