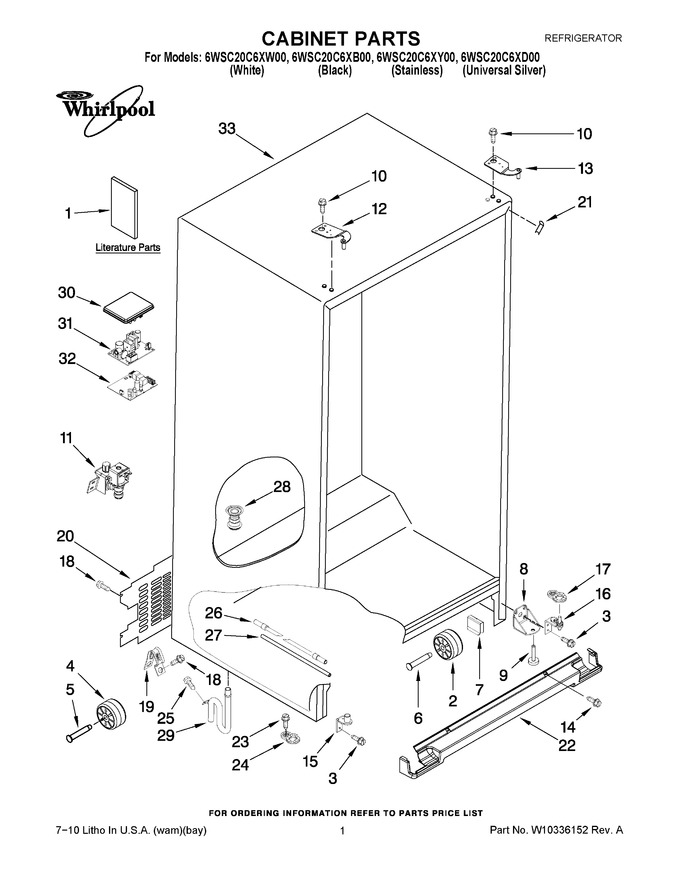

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10323418 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10299711 | Energy Label |
|
- | |||||
| 1 | W10299703 | Use & Care Guide |
|
- | |||||
| 2 | WPW10475495 | Front Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 7.62 | |||||
| 4 | 12477102 | Roller (rear) |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.52 | ||||
| 6 | WPW10285005 | Rivet, Roller (Replaces: W10285005) |
|
$ 15.96 | |||||
| 7 | W11545866 | Clip, Axle (Replaces: 2223388) |
|
$ 11.31 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 63.15 | |||||
| 9 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 10 | WPW10308750 | Screw (Replaces: W10308750) |
|
$ 69.80 | |||||
| 11 | WPW10258560 | Valve, Inlet (Replaces: W10258560) |
|
$ 176.39 | |||||
| 12 | W10901051 | Hinge, Top (fc) (white) (Replaces: W10247899) |
|
$ 70.58 | |||||
| 12 | W10901052 | Hinge, Top (fc) (black) (Replaces: W10249920) |
|
$ 72.99 | |||||
| 12 | W11590581 | Hinge, Top (fc) (apollo Grey) (Replaces: W10249922) |
|
$ 23.06 | |||||
| 13 | W11568758 | Hinge, Top (rc) (black) (Replaces: W10249923) |
|
$ 23.81 | |||||
| 13 | W11409290 | Hinge, Top (rc) (apollo Grey) (Replaces: W10249925) |
|
$ 67.12 | |||||
| 13 | W11573587 | Hinge, Top (rc) (white) (Replaces: W10247901) |
|
$ 23.06 | |||||
| 14 | WPW10142283 | Screw (Replaces: W10142283) |
|
$ 9.84 | |||||
| 15 | W11293374 | Bottom Hinge (fc) (apollo Grey) (Replaces: W10249943) |
|
$ 69.83 | |||||
| 15 | W10249941 | Bottom Hinge (fc) (black) |
|
- | |||||
| 15 | W11293373 | Bottom Hinge (fc) (white) (Replaces: W10249940) |
|
$ 67.40 | |||||
| 16 | W10500001 | Bottom Hinge (rc) (black) (Replaces: W10257207) |
|
$ 80.35 | |||||
| 16 | W10500004 | Bottom Hinge (rc) (apollo Grey) (Replaces: W10257209) |
|
Immediately | $ 132.52 | ||||
| 16 | W10500000 | Bottom Hinge (rc) (white) (Replaces: W10257188) |
|
$ 12.34 | |||||
| 17 | W10500001 | Door Closer (rc) (black) (Replaces: W10257195) |
|
$ 80.35 | |||||
| 17 | W10500004 | Door Closer (rc) (apollo Grey) (Replaces: W10257197) |
|
Immediately | $ 132.52 | ||||
| 17 | W10500000 | Door Closer (rc) (white) (Replaces: W10247905) |
|
$ 12.34 | |||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 19 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 20 | W10257325 | Cover, Unit |
|
- | |||||
| 21 | 67003485 | Filler, Wrapper (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 21 | 12587703W | Filler, Wrapper (white) |
|
$ 21.81 | |||||
| 21 | WP12587703AP | Filler, Wrapper (apollo Grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 22 | WPW10713160 | Grille (white) (Replaces: W10257231) |
|
$ 131.08 | |||||
| 22 | WPW10713153 | Grille (midnight Grey) (Replaces: W10257234) |
|
Immediately | $ 129.07 | ||||
| 22 | WPW10713158 | Grille (black) (Replaces: W10257232) |
|
$ 93.73 | |||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 24 | W10876191 | Door Closer (fc) (midnight Grey) (Replaces: W10257200) |
|
$ 17.12 | |||||
| 24 | W10876198 | Door Closer (fc) (white) (Replaces: W10247903) |
|
$ 12.03 | |||||
| 24 | W10770895 | Door Closer (fc) (black) (Replaces: W10257198) |
|
$ 15.03 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10277956) |
|
$ 108.79 | |||||
| 27 | WPW10279884 | Tube, Filter Outlet (Replaces: W10277957) |
|
$ 131.51 | |||||
| 28 | W10247979 | Drain Fitting |
|
$ 64.59 | |||||
| 29 | W10280082 | Extension Tube |
|
- | |||||
| 30 | W11226688 | Cover (Replaces: 12957702) |
|
$ 81.10 | |||||
| 31 | WPW10158418 | Elec. Control-15w (Replaces: W10158418) |
|
$ 295.77 | |||||
| 32 | WPW10235413 | Elec. Control (Replaces: W10235413) |
|
$ 227.51 | |||||
| 33 | N/P | Cabinet (not A Serviceable Part) |
|
- |
