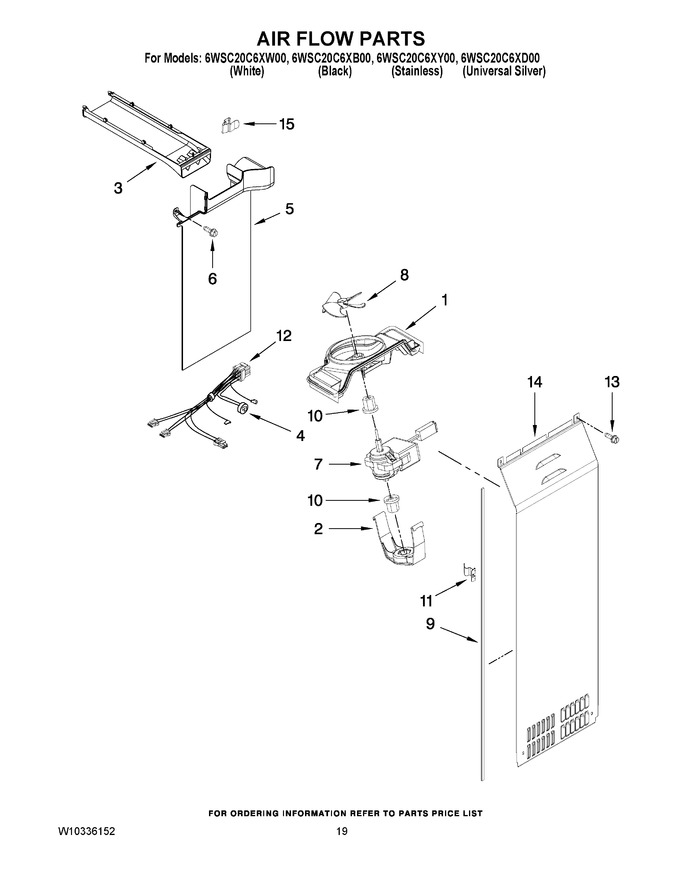

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Fan Scroll   (Replaces: W10251462)				$ 29.24
2	W11671527		Retainer, Fan Motor   (Replaces: W10260421)				$ 22.86
3	W10260380		Air Duct, Upper		Appelez-nous	-
4	W11590570		Bi-metal, Defrost   (Replaces: W10260440)		Appelez-nous	-
5	W10260378		Air Duct Freezer		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 7.75
7	WPW10312014		Fan Motor   (Replaces: W10312014)				$ 253.90
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
11	W11232019		Clip, Mounting   (Replaces: W10274578)			Immediately	$ 10.85
12	W10859317		Harness, Fan Evaporator (includes No.4)   (Replaces: W10193316)		Appelez-nous	-
13	WP693995		Screw, Evap Cover   (Replaces: W10142292)			Immediately	$ 7.19
14	W10239739		Cover, Evaporator (includes No.9)		Appelez-nous	-
15	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
