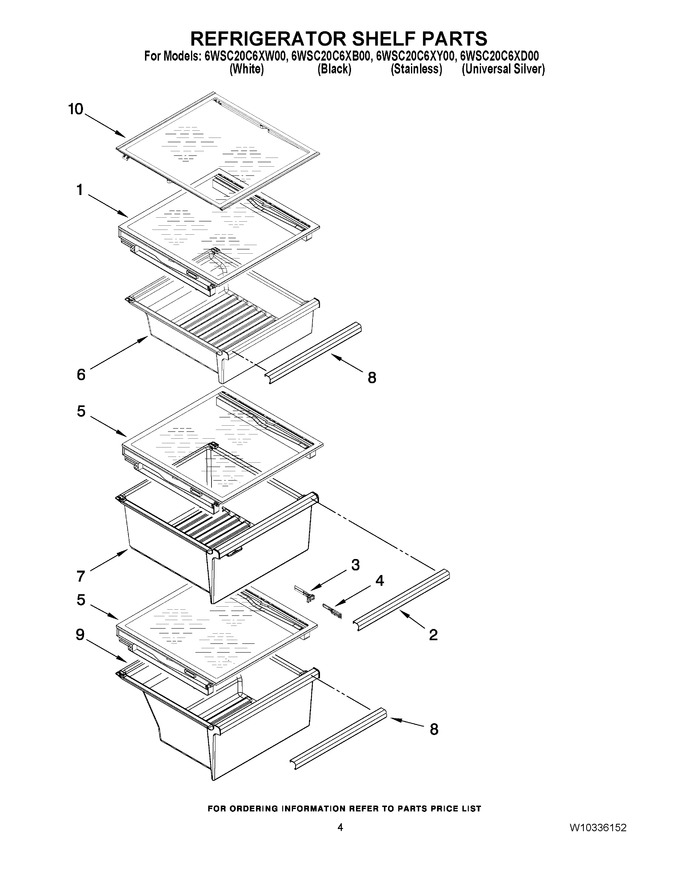

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290863		Shelf, Snack Pan		Appelez-nous	-
2	W10309635		Trim, Handle		Appelez-nous	-
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 29.05
4	WPW10282880		Housing, Humidity   (Replaces: W10282880)				$ 53.91
5	W10290871		Cover, Assy		Appelez-nous	-
6	W11551764		Snack Pan (also Order 8)   (Replaces: W10256846)				$ 97.72
7	WPW10292504		Crisper Pan (includes 2, 3, & 4)   (Replaces: W10292504)			Immediately	$ 141.79
8	W10309636		Trim, Handle   (Replaces: W10281628)		Appelez-nous	-
9	W11789833		Meat Pan (also Order 8)   (Replaces: W10256854)				$ 172.44
10	WPW10269156		Shelf Assy   (Replaces: W10269156)				$ 152.21
