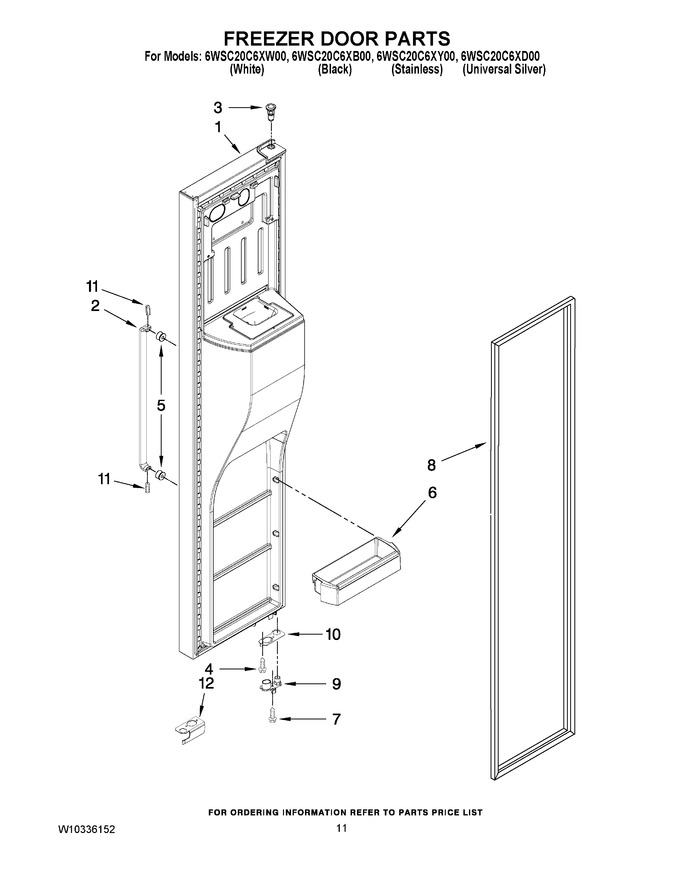

6WSC20C6XW00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10290930	Freezer Door (includes Item 8 And Dispenser Front Parts) (black)	Appelez-nous	-
1	W10290932	Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)	Appelez-nous	-
1	W10290941	Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver)	Appelez-nous	-
1	W10281989	Freezer Door (includes Item 8 And Dispenser Front Parts) (white)	Appelez-nous	-
2	W10851029	Handle (Replaces: W10277354)	Appelez-nous	-
3	WP2182181	Thimble-top (Replaces: 2200087)			$ 7.76
4	WPW10296804	Screw (Replaces: W10296804)			$ 10.85
5	WPW10170540	Stud, Handle (Replaces: W10170540)		Immediately	$ 8.51
6	W10323219	Door Bin	Appelez-nous	-
7	WPW10296816	Screw (Replaces: W10296816)			$ 7.52
8	WPW10355585	Door Gasket, Magnetic (apollo Black) (Replaces: W10249917)			$ 321.21
8	WPW10249913	Door Gasket, Magnetic (black) (Replaces: W10249913)			$ 305.76
8	WPW10247885	Door Gasket, Magnetic (mist Beige) (Replaces: W10247885)			$ 330.54
9	WPW10257206	Door Closer, Upper Cam (apollo Grey) (Replaces: W10257206)		Immediately	$ 12.55
9	W11607100	Door Closer, Upper Cam (black) (Replaces: W10257204)		Immediately	$ 13.31
9	WPW10248015	Door Closer, Upper Cam (white) (Replaces: W10248015)			$ 12.25
10	W11293380	Bracket, Door Stop (chrome) (Replaces: W10247907)			$ 65.91
11	W11366418	Set Screw (Replaces: W10223573)		Immediately	$ 15.79
12	WPW10632062	Cover, Door Stop (midnight Grey) (Replaces: W10257223)			$ 7.19
12	W10632059	Cover, Door Stop (white) (Replaces: W10257220)			$ 22.34
12	W10632060	Cover, Door Stop (black) (Replaces: W10257221)			$ 21.24
