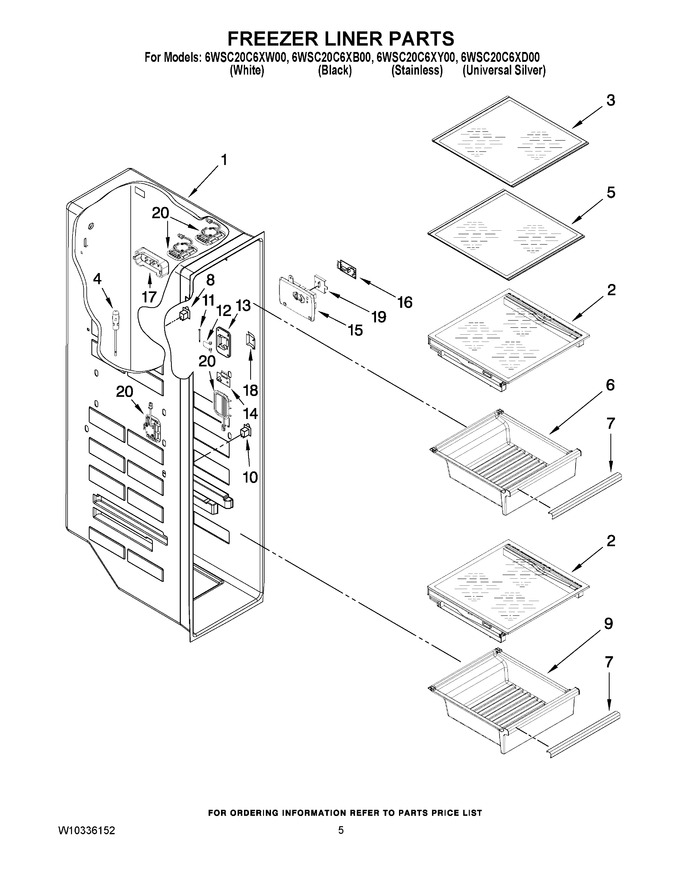

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10269160		Shelf, Glass Upper   (Replaces: W10269160)				$ 151.26
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 32.00
5	W11098699		Shelf, Glass Lower   (Replaces: W10269161)				$ 216.51
6	W10256858		Pan, Freezer Upper Also Order 7		Appelez-nous	-
7	W10281629		Trim, Handle		Appelez-nous	-
8	W11123943		Switch, Rocker Arm Upper   (Replaces: 2149954)				$ 34.91
9	W10256861		Pan, Freezer Lower Also Order 7		Appelez-nous	-
10	2321286		Switch, Rocker Arm Lower		Appelez-nous	-
11	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
12	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
13	W10258502		Cover, Emitter				$ 85.47
14	W10870822		P.c. Board Emitter   (Replaces: W10180607)			Immediately	$ 222.54
15	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 42.38
16	W11813704		P.c. Board Receiver   (Replaces: W10296530)			Immediately	$ 313.30
17	W10425253		Cover, Thermistor   (Replaces: W10323646)		Appelez-nous	-
18	WPW10258520		Flipper   (Replaces: W10258520)				$ 75.86
19	W10258540		Slide, Ice Maker Shut Off				$ 10.62
20	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 259.02
