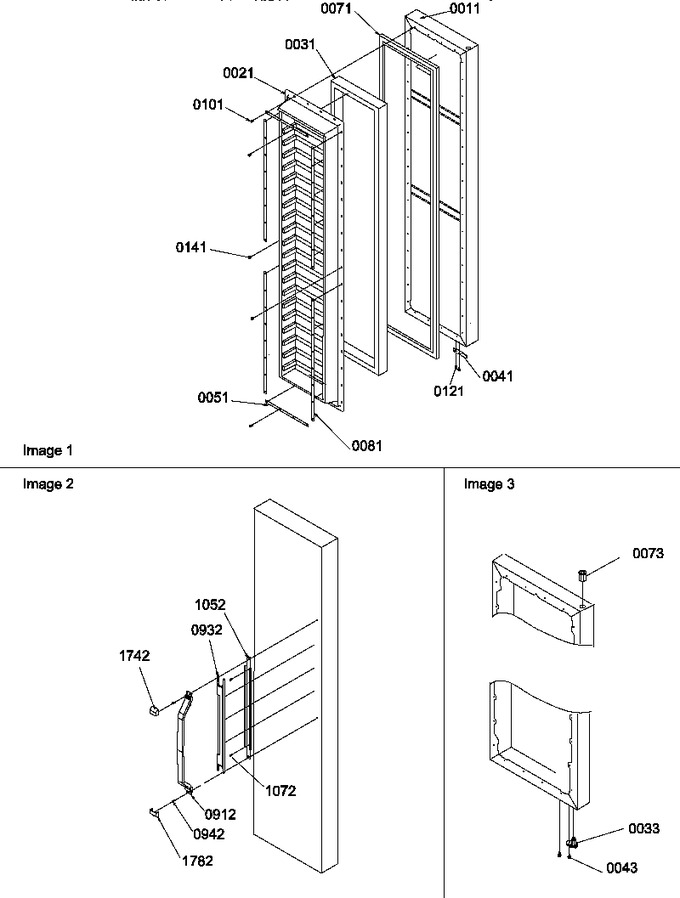

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881503L		Assy, Fz Dr Fm (alm)		Appelez-nous	-
21	10522001		Liner, Frz Door (conv.)		Appelez-nous	-
31	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972403		Stop, Door (blk)		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	C8982801		Retainer, Door Liner		Appelez-nous	-
71	10359709		Gasket (w Frz Dr)		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
81	D7828601		Retainer, Door Liner		Appelez-nous	-
101	M0219730		Screw				$ 7.65
121	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
141	M0226705		Screw, Shoulder		Appelez-nous	-
912	12139306		Handle, Door (black)		Appelez-nous	-
932	10810403		Trim- E Ctr Dr		Appelez-nous	-
942	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1052	10852211		Ret-trim		Appelez-nous	-
1072	M0216517		Screw		Appelez-nous	-
1742	10975805		Cap-e Dr Handle		Appelez-nous	-
1782	10975806		Cap-e Dr Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
