SM22TBL (BOM: P1190212W L) | Leon's : Appliance Model Lookup

SELECT A DIAGRAM

Diagram for 01 - Cabinet Back

01 - Cabinet Back

Diagram for 02 - Cabinet Parts

02 - Cabinet Parts

Diagram for 03 - Control Assy

03 - Control Assy

Diagram for 04 - Drain System, Rollers, And Evap Assy

04 - Drain System, Rollers, And Evap Assy

Diagram for 05 - Fz Door

Diagram for 06 - Fz Shelves And Light

06 - Fz Shelves And Light

Diagram for 07 - Ice Maker Parts And Add On Ice Maker Kit

07 - Ice Maker Parts And Add On Ice Maker Kit

Diagram for 08 - Machine Compartment

08 - Machine Compartment

Diagram for 09 - Ref Door

09 - Ref Door

$Diagram for 10 - Ref\fz Shelves, Lights, And Hinges$
10 - Ref\fz Shelves, Lights, And Hinges

Diagram for 11 - Shelf, Crisper Assemblies & Toe Grille

11 - Shelf, Crisper Assemblies & Toe Grille

New Model Search:

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
181	M0322202		Tie Wire		Appelez-nous	-
191	M0580007		Grommet, Screw		Appelez-nous	-
261	40A15		Bulb, Light (40 Watt) (Replaces: A0282803)			Immediately	$ 1.98
301	12012501		Shelf, Stat. Freezer		Appelez-nous	-
311	12012605		Shelf-sta Fz		Appelez-nous	-
381	10972801		Rail, Shelf (rt)		Appelez-nous	-
421	WP98165		Screw, Sm (Replaces: M0211018)				$ 8.57
431	M0310305		Plug, Button (wht)		Appelez-nous	-
451	C8973405		Socket-light		Appelez-nous	-
491	12015101		Rail, Shelf (lt)		Appelez-nous	-
571	M0270508		Washer		Appelez-nous	-
711	10014715		Shield, Light		Appelez-nous	-
1201	10493302		Cover, Frz Light		Appelez-nous	-
1211	M0238846		Screw-sm		Appelez-nous	-
1371	12012001		Basket, Freezer		Appelez-nous	-
1401	12015002		Support, Shelf (lt)				$ 7.38
1411	WP10941102		Support, Shelf (rt)				$ 11.81
7091	WP22002933		Screw, Sm (Replaces: M0211357)				$ 8.06

View Diagram in Separate Window Print Part List

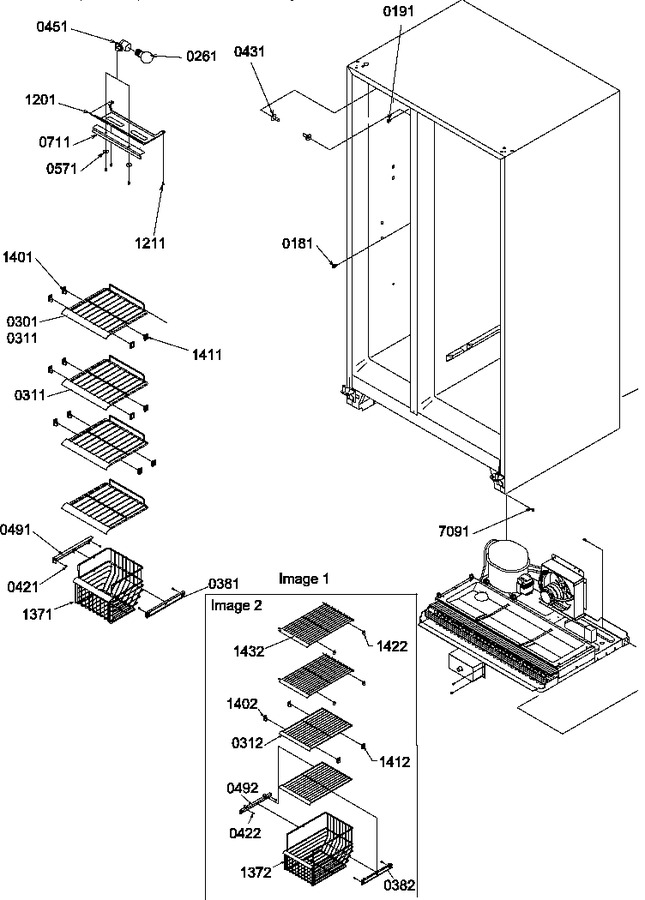

Diagram for SM22TBL (BOM: P1190212W L)
