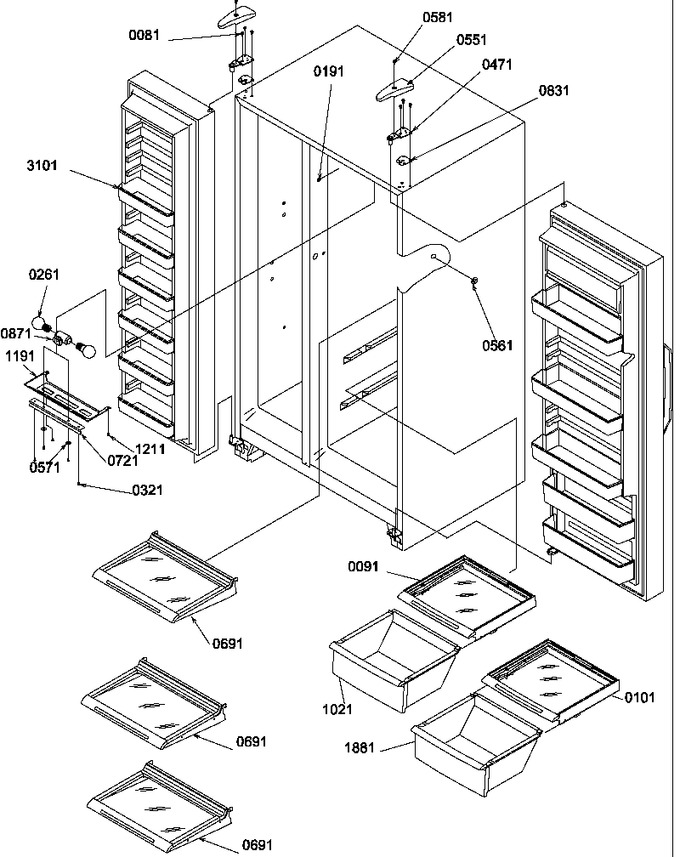

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 81 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 91 | 10883018 | Assy, Up Crisp Frame |
|
- | |||||
| 101 | 10883019 | Assy, Lwr Crisp Frame |
|
- | |||||
| 191 | M0580007 | Grommet, Screw |
|
- | |||||
| 261 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 321 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 471 | 12077312 | Hinge, Top (e-ct) |
|
- | |||||
| 551 | 10849407 | Cover-l Hinge |
|
- | |||||
| 561 | 10033201 | Deflector, Air |
|
- | |||||
| 571 | M0270508 | Washer |
|
- | |||||
| 581 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.55 | ||||
| 691 | 10880702 | Assy, Glass Shelf |
|
- | |||||
| 721 | 10014716 | Shield, Light |
|
- | |||||
| 831 | 12223003 | Shim, Top Hinge |
|
- | |||||
| 871 | 12156201 | Socket, Dual Lamp |
|
- | |||||
| 1021 | 10471817 | Pan, Crisper |
|
- | |||||
| 1191 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 1211 | M0238846 | Screw-sm |
|
- | |||||
| 1881 | 10469022 | Pan-crisper |
|
- | |||||
| 3101 | 10523905 | Bucket, Fz Door |
|
- | |||||
| 3101 | 10523907 | Bucket-fz Door |
|
- |
